ShineOn COB LED
Standard / Kaleidolite™ / High Densisty
Shineon wurde 2009 mit dem Ziel gegründet hochqualitative LED Produkte zu einem sehr wettbewerbsfähigen Preis zunächst für den lokalen chinesischen Markt zu entwickeln und zu produzieren. Haupsitz und Entwicklungszentrum von Shineon sind in Peking angesiedelt – Shineon konzentriert im LED Herstellungsprozess auf das sog. Packaging: LED Chips werden von den führenden Herstellern (z.B. San'an & Epistar) zugekauft und dann in das Package eingesetzt, kontaktiert und mit der entsprechenden Phosphormischung vergossen.
Shineon hat von Anfang sehr viel Wert auf die Patentsicherheit gelegt und nur mit vertrauensvollen und verlässlichen Herstellern von (LED-)Teilkomponentenen kooperiert um seine Kunden und sich selbst abzusichern. In Asien gilt die Firma Shineon als Begründer des "modernen" 2835 Packages: Vor einigen Jahren hatte Shineon begonnen das klassisch vorhandene 3528 Package umzudesignen – das Ergebniss wurde schlichterweise einfach in "2835 Package" umbenannt. Das Produkt kam im asiatischen Markt derart gut an, dass vielen Unternehmen sich diese LED-Package-Revolution anschlossen und so zu immensen Popularität des 2835 Packages beitrugen. Auch heute noch lassen vielen marktbekannte "Hersteller" die 2835 von Shineon für sich fertigen und auf Ihr Markenlogo branden. Neben den dem 2835 Package Mid-Power LEDs fokussiert sich Shineon ebenso auf COBs für Strahler und auch kundenspezifische LED Module – für DC Applikationen aber auch als DOB (Driver-On-Board) Varianten, die keinen externen LED treiber benötigen sondern direkt ans Wechselstromnetz angeschlossen werden können.
Mit ihrem Vertriebspartner für LEDs, der Firma Beck Elektronik, betritt Shineon erstmal 2017 den Europäischen Markt und schwingt sich in gemeinsamer Zusammenarbeit mit uns zu einem sehr ernst zunehmenden Konkurrenten des bestehenden LED-Hersteller-Establishments empor.
Tabs
Standard

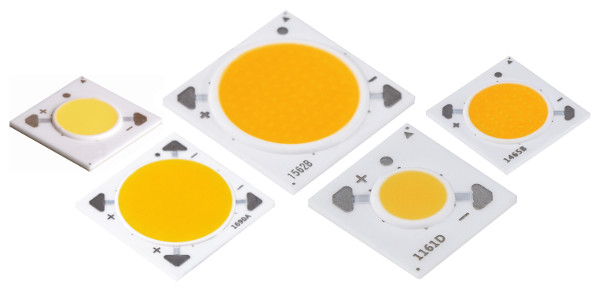

Standard COB:
COB auf der Schwarz-Körper-Kurve (Black Body Line = BBL).
LES [mm] | Typ | Produkt | CCT | min. CRI | If [mA] | Vf [V] | Luminous Intensity [lm] | |
---|---|---|---|---|---|---|---|---|
9.8 | MC-13AA | MC-13AA-300-H-1202-C | 3000 | 82 | 90-120 | 33.5-34.0 | 471-612 | Download |
9.8 | MC-13AA | MC-13AA-400-H-1202-C | 4000 | 82 | 90-120 | 33.5-34.0 | 485-630 | Download |
9.8 | MC-13AA | MC-13AA-300-S-1202-C | 3000 | 91 | 90-120 | 33.5-34.0 | 401-520 | Download |
9.8 | MC-13AA | MC-13AA-400-S-1202-C | 4000 | 91 | 90-120 | 33.5-34.0 | 413-536 | Download |
9.8 | MC-13AA | MC-13AA-300-H-1203-C | 4000 | 82 | 135-180 | 33.5-34.0 | 693-900 | Download |
9.8 | MC-13AA | MC-13AA-400-H-1203-C | 4000 | 82 | 135-180 | 33.5-34.0 | 714-927 | Download |
9.8 | MC-13AA | MC-13AA-300-S-1203-C | 3000 | 91 | 135-180 | 33.5-34.0 | 589-765 | Download |
9.8 | MC-13AA | MC-13AA-400-S-1203-C | 4000 | 91 | 135-180 | 33.5-34.0 | 607-788 | Download |
9.8 | MC-13AA | MC-13AA-300-H-1204-C | 3000 | 82 | 180-240 | 33.5-34.0 | 909-1180 | Download |
9.8 | MC-13AA | MC-13AA-400-H-1204-C | 4000 | 82 | 180-240 | 33.5-34.0 | 936-1215 | Download |
9.8 | MC-13AA | MC-13AA-300-S-1204-C | 3000 | 91 | 180-240 | 33.5-34.0 | 772-1003 | Download |
9.8 | MC-13AA | MC-13AA-400-S-1204-C | 4000 | 91 | 180-240 | 33.5-34.0 | 795-1033 | Download |
9.8 | MC-13AA | MC-13AA-300-H-1203-B | 3000 | 82 | 270-360 | 34.5-35.0 | 1455-1865 | Download |
9.8 | MC-13AA | MC-13AA-400-H-1203-B | 4000 | 82 | 270-360 | 34.5-35.0 | 1498-1921 | Download |
9.8 | MC-13AA | MC-13AA-300-S-1203-B | 3000 | 91 | 270-360 | 34.5-35.0 | 1236-1585 | Download |
9.8 | MC-13AA | MC-13AA-400-S-1203-B | 4000 | 91 | 270-360 | 34.5-35.0 | 1274-1633 | Download |
9.8 | MC-13AA | MC-13AA-300-H-1204-B | 3000 | 82 | 360-480 | 34.5-35.0 | 1899-2435 | Download |
9.8 | MC-13AA | MC-13AA-400-H-1204-B | 4000 | 82 | 360-480 | 34.5-35.0 | 1956-2508 | Download |
9.8 | MC-13AA | MC-13AA-300-S-1204-B | 3000 | 91 | 360-480 | 34.5-35.0 | 1614-2070 | Download |
9.8 | MC-13AA | MC-13AA-300-S-1204-B | 3000 | 91 | 360-480 | 34.5-35.0 | 1663-2132 | Download |
6.0 | MC-13BT | MC-13BT-300-H-0305-C | 3000 | 82 | 225-300 | 8.4-8.5 | 286-372 | Download |
6.0 | MC-13BT | MC-13BT-400-H-0305-C | 4000 | 82 | 225-300 | 8.4-8.5 | 295-383 | Download |
6.0 | MC-13BT | MC-13BT-300-H- 1202-C | 3000 | 82 | 90-120 | 33.5-34.0 | 420-545 | Download |
6.0 | MC-13BT | MC-13BT-400-H- 1202-C | 4000 | 82 | 90-120 | 33.5-34.0 | 432-561 | Download |
14.5 | MC-19AA | MC-19AA-300-H-1206-C | 3000 | 82 | 270-360 | 33.5-34.0 | 1442-1873 | Download |
14.5 | MC-19AA | MC-19AA-400-H-1206-C | 4000 | 82 | 270-360 | 33.5-34.0 | 1485-1929 | Download |
14.5 | MC-19AA | MC-19AA-300-S-1206-C | 3000 | 91 | 270-360 | 33.5-34.0 | 1226-1592 | Download |
14.5 | MC-19AA | MC-19AA-400-S-1206-C | 4000 | 91 | 270-360 | 33.5-34.0 | 1263-1640 | Download |
14.5 | MC-19AA | MC-19AA-300-H-1208-C | 3000 | 82 | 360-480 | 33.5-34.0 | 1885-2448 | Download |
14.5 | MC-19AA | MC-19AA-400-H-1208-C | 4000 | 82 | 360-480 | 33.5-34.0 | 1942-2521 | Download |
14.5 | MC-19AA | MC-19AA-300-S-1208-C | 3000 | 91 | 360-480 | 33.5-34.0 | 1602-2081 | Download |
14.5 | MC-19AA | MC-19AA-400-S-1208-C | 4000 | 91 | 360-480 | 33.5-34.0 | 1650-2143 | Download |
14.5 | MC-19AA | MC-19AA-300-H-1212-C | 3000 | 82 | 540-720 | 33.5-34.0 | 2734-3550 | Download |
14.5 | MC-19AA | MC-19AA-400-H-1212-C | 4000 | 82 | 540-720 | 33.5-34.0 | 2816-3657 | Download |
14.5 | MC-19AA | MC-19AA-300-S-1212-C | 3000 | 91 | 540-720 | 33.5-34.0 | 2323-3018 | Download |
14.5 | MC-19AA | MC-19AA-400-S-1212-C | 4000 | 91 | 540-720 | 33.5-34.0 | 2393-3108 | Download |
14.5 | MC-19AA | MC-19AA-300-H-1208-B | 3000 | 82 | 720-960 | 34.5-35.0 | 3853-4940 | Download |
14.5 | MC-19AA | MC-19AA-400-H-1208-B | 4000 | 82 | 720-960 | 34.5-35.0 | 3969-5088 | Download |
14.5 | MC-19AA | MC-19AA-300-S-1208-B | 3000 | 91 | 720-960 | 34.5-35.0 | 3275-4199 | Download |
14.5 | MC-19AA | MC-19AA-400-S-1208-B | 4000 | 91 | 720-960 | 34.5-35.0 | 3373-4325 | Download |
14.5 | MC-19AA | MC-19AA-300-H-1210-B | 3000 | 82 | 900-1200 | 34.5-35.0 | 4715-6045 | Download |
14.5 | MC-19AA | MC-19AA-400-H-1210-B | 4000 | 82 | 900-1200 | 34.5-35.0 | 4857-6226 | Download |
14.5 | MC-19AA | MC-19AA-300-S-1210-B | 3000 | 91 | 900-1200 | 34.5-35.0 | 4008-5138 | Download |
14.5 | MC-19AA | MC-19AA-400-S-1210-B | 4000 | 91 | 900-1200 | 34.5-35.0 | 4128-5292 | Download |
23.0 | MC-28AA | MC-28AA-300-H-1212-B | 3000 | 82 | 1080-1440 | 35.0-35.5 | 5382-6900 | Download |
23.0 | MC-28AA | MC-28AA-400-H-1212-B | 4000 | 82 | 1080-1440 | 35.0-35.5 | 5543-7107 | Download |
23.0 | MC-28AA | MC-28AA-300-S-1212-B | 3000 | 91 | 1080-1440 | 35.0-35.5V | 4575-5865 | Download |
23.0 | MC-28AA | MC-28AA-400-S-1212-B | 4000 | 91 | 1080-1440 | 35.0-35.5 | 4712-6041 | Download |
23.0 | MC-28AA | MC-28AA-300-H-1812-B | 3000 | 82 | 1080-1440 | 52.5-53.2 | 7714-9890 | Download |
23.0 | MC-28AA | MC-28AA-400-H-1812-B | 4000 | 82 | 1080-1440 | 52.5-53.2 | 7946-10187 | Download |
23.0 | MC-28AA | MC-28AA-300-S-1812-B | 3000 | 91 | 1080-1440 | 52.5-53.2 | 6557-8407 | Download |
23.0 | MC-28AA | MC-28AA-400-S-1812-B | 4000 | 91 | 1080-1440 | 52.5-53.2 | 6754-8659 | Download |
32.8 | MC-38AA | MC-38AA-300-H-1708-B | 3000 | 82 | 960 | 51.0 | 6800 | Download |
32.8 | MC-38AA | MC-38AA-400-H-1708-B | 4000 | 82 | 960 | 51.0 | 7004 | Download |
32.8 | MC-38AA | MC-38AA-300-H-1716-B | 3000 | 82 | 1920 | 51.0 | 12560 | Download |
32.8 | MC-38AA | MC-38AA-400-H-1716-B | 4000 | 82 | 1920 | 51.0 | 12937 | Download |
LES [mm] | Typ | Produkt | CCT | min. CRI | If [mA] | Vf [V] | Luminous Intensity [lm] |
LES [mm] | Typ | Produkt | CCT | min. CRI | If [mA] | Vf [V] | Luminous Intensity [lm] | |
---|---|---|---|---|---|---|---|---|
6.0 | MT-13AB | MT-13AB-300-H-0305-B2 | 3000 | 82 | 400 | 9.0 | 430 | Download |
6.0 | MT-13AB | MT-13AB-400-H-0305-B2 | 4000 | 82 | 400 | 9.0 | 443 | Download |
6.0 | MT-13AB | MT-13AB-300-S-0305-B2 | 3000 | 91 | 400 | 9.0 | 366 | Download |
6.0 | MT-13AB | MT-13AB-400-S-0305-B2 | 4000 | 91 | 400 | 9.0 | 376 | Download |
6.0 | MT-13AB | MT-13AB-300-H-1202-C4 | 3000 | 82 | 100 | 34.0 | 430 | Download |
6.0 | MT-13AB | MT-13AB-400-H-1202-C4 | 4000 | 82 | 100 | 34.0 | 443 | Download |
6.0 | MT-13AB | MT-13AB-300-S-1202-C4 | 3000 | 91 | 100 | 34.0 | 366 | Download |
6.0 | MT-13AB | MT-13AB-400-S-1202-C4 | 4000 | 91 | 100 | 34.0 | 376 | Download |
8.9 | MT-15AA | MT-15AA-300-H-1203-C4 | 3000 | 82 | 200 | 35.5 | 895 | Download |
8.9 | MT-15AA | MT-15AA-400-H-1203-C4 | 4000 | 82 | 200 | 35.5 | 922 | Download |
8.9 | MT-15AA | MT-15AA-300-S-1203-C4 | 3000 | 91 | 200 | 35.5 | 761 | Download |
8.9 | MT-15AA | MT-15AA-400-S-1203-C4 | 4000 | 91 | 200 | 35.5 | 784 | Download |
8.9 | MT-15AA | MT-15AA-300-H-1202-B2 | 3000 | 82 | 250 | 36.0 | 1100 | Download |
8.9 | MT-15AA | MT-15AA-400-H-1202-B2 | 4000 | 82 | 250 | 36.0 | 1133 | Download |
8.9 | MT-15AA | MT-15AA-300-S-1202-B2 | 3000 | 91 | 250 | 36.0 | 935 | Download |
8.9 | MT-15AA | MT-15AA-400-S-1202-B2 | 4000 | 91 | 250 | 36.0 | 963 | Download |
8.9 | MT-15AA | MT-15AA-300-H-1203-B2 | 3000 | 82 | 350 | 36.0 | 1500 | Download |
8.9 | MT-15AA | MT-15AA-400-H-1203-B2 | 4000 | 82 | 350 | 36.0 | 1545 | Download |
8.9 | MT-15AA | MT-15AA-300-S-1203-B2 | 3000 | 91 | 350 | 36.0 | 1275 | Download |
8.9 | MT-15AA | MT-15AA-400-S-1203-B2 | 4000 | 91 | 350 | 36.0 | 1313 | Download |
12.0 | MT-18AA | MT-18AA-300-H-1204-B2 | 3000 | 82 | 450 | 36.0 | 2030 | Download |
12.0 | MT-18AA | MT-18AA-400-H-1204-B2 | 4000 | 82 | 450 | 36.0 | 2091 | Download |
12.0 | MT-18AA | MT-18AA-300-S-1204-B2 | 3000 | 91 | 450 | 36.0 | 1726 | Download |
12.0 | MT-18AA | MT-18AA-400-S-1204-B2 | 4000 | 91 | 450 | 36.0 | 1777 | Download |
12.0 | MT-18AA | MT-18AA-300-H-1205-B2 | 3000 | 82 | 550 | 36.0 | 2370 | Download |
12.0 | MT-18AA | MT-18AA-400-H-1205-B2 | 4000 | 82 | 550 | 36.0 | 2441 | Download |
12.0 | MT-18AA | MT-18AA-300-S-1205-B2 | 3000 | 91 | 550 | 36.0 | 2015 | Download |
12.0 | MT-18AA | MT-18AA-400-S-1205-B2 | 4000 | 91 | 550 | 36.0 | 2075 | Download |
14.0 | MT-18AB | MT-18AB-300-H-1207-B2 | 3000 | 82 | 800 | 36.0 | 3450 | Download |
14.0 | MT-18AB | MT-18AB-400-H-1207-B2 | 4000 | 82 | 800 | 36.0 | 3554 | Download |
14.0 | MT-18AB | MT-18AB-300-S-1207-B2 | 3000 | 91 | 800 | 36.0 | 2933 | Download |
14.0 | MT-18AB | MT-18AB-400-S-1207-B2 | 4000 | 91 | 800 | 36.0 | 3020 | Download |
19.0 | MT-25AA | MT-25AA-300-H-1207-B | 3000 | 82 | 800 | 36.0 | 3950 | Download |
19.0 | MT-25AA | MT-25AA-400-H-1207-B | 4000 | 82 | 800 | 36.0 | 4069 | Download |
19.0 | MT-25AA | MT-25AA-300-S-1207-B | 3000 | 91 | 800 | 36.0 | 3358 | Download |
19.0 | MT-25AA | MT-25AA-400-S-1207-B | 4000 | 91 | 800 | 36.0 | 3458 | Download |
19.0 | MT-25AA | MT-25AA-300-H-1210-B | 3000 | 82 | 1100 | 35.5 | 5150 | Download |
19.0 | MT-25AA | MT-25AA-400-H-1210-B | 4000 | 82 | 1100 | 35.5 | 5305 | Download |
19.0 | MT-25AA | MT-25AA-300-S-1210-B | 3000 | 91 | 1100 | 35.5 | 4378 | Download |
19.0 | MT-25AA | MT-25AA-400-S-1210-B | 4000 | 91 | 1100 | 35.5 | 4509 | Download |
LES [mm] | Typ | Produkt | CCT | min. CRI | If [mA] | Vf [V] | Luminous Intensity [lm] |
Produkteigenschaften:
- Verschiedene LES stehen zur Verfügung: 6.0, 9.8, 14.5, 22.9, 32.8 mm (MC-19AA: verschiedene Chip Verschaltungsvariante)
- CCT Bereich von 2700K bis 6500K verfügbar
- CRI Wahlmöglichkeiten min. 80 / 90
- PCB Substrat und LES entsprechen den marktüblichen Anforderungen
Einsatzmöglichkeiten:
- Spot- und Track-Lights
- Shop- und Schaufensterbeleuchtung
- Im Wohn- wie im Office-Bereich
- High Bay Leuchten im Industriebereich
- Outdoor- und Straßenbeleuchtung
Tabs
Kaleidolite™

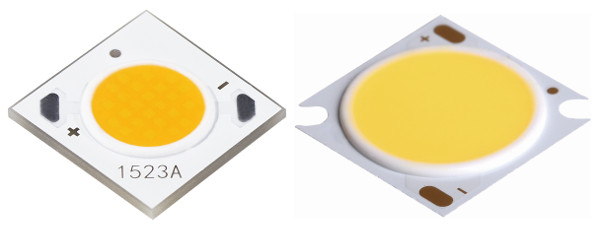

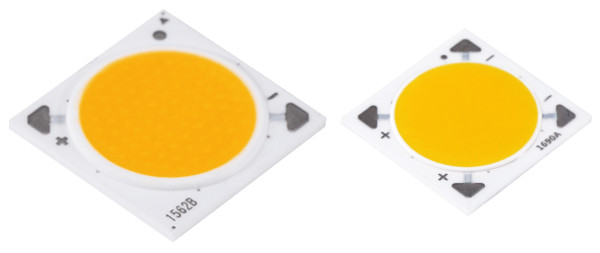

Kaleidolite™ COB:
COB mit bester Farbsättigung und Ultra High CRI.
LES [mm] | Typ | Produkt | CCT | min. CRI | If [mA] | Vf [V] | Luminous Intensity [lm] | |
---|---|---|---|---|---|---|---|---|
MC-19AA | MC-19AA-V30-H-1208-B | V3000 | 80 |
960 | 35.5 | 4535 | Download |
|
MC-19AA | MC-19AA-V30-E-1208-B | V3000 | 95 | 960 | 35.5 | 3670 | Download | |
8.9 | MN-15G9 | MN-15G9-V30-H-1202-K | V3000 | 80 | 700 | 37.0 | 2600 | Download |
8.9 | MN-15G9 | MN-15G9-V30-E-1202-K | V3000 | 95 | 700 | 37.0 | 2085 | Download |
14.0 | MT-18AB | MT-18AB-V3B-S-1207-B | 90 | 720 | 35.5 | 2920 | Download | |
14.0 | MT-18AB | MT-18AB-M3A-H-1207-B | 80 | 720 | 35.5 | 2270 | Download | |
19.0 | MT-25AA | MT-25AA-V3B-S-1210-B | 90 | 1200 | 35.5 | 4930 | Download | |
19.0 | MT-25AA | MT-25AA-M3A-H-1210-B | 80 | 1200 | 35.5 | 3800 | Download |
Main features:
- Metal Halide Replacement (Power): 40W (MC-19AA: LED replacement of traditional metal halide lamps)
- 8-12 degrees lighting application
- Light emitting surface (LES): 8.9, 14, 19 mm (MC-19AA: different sizes)
- Color rendering index (CRI): 80-90 Ra
- Forward voltage (Vf): 36 V
Applications:
- MC-19AA, MN-15G9: Directional Track Lights, Par20/30/38
- MT-18AB: MR16, GU10, Track Lights, Par 20/30/38
- MT-25AA: Downlights, High Bay Lights
Tabs
High Density

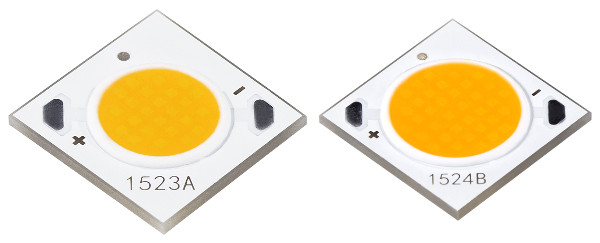

High Density COB:
COB mit extrem kompakter Leuchtfläche für engstrahlige Applikationen.
LES [mm] | Typ | Produkt | CCT | min. CRI | If [mA] | Vf [V] | Luminous Intensity [lm] | |
---|---|---|---|---|---|---|---|---|
6.0 | MN-13G6 | MN-13G6-300-H-1201-K | 3000 | 82 | 430 | 36 | 1450 | Download |
6.0 | MN-13G6 | MN-13G6-400-H-1201-K | 4000 | 82 | 430 | 36 | 1494 | Download |
6.0 | MN-13G6 | MN-13G6-300-S-1201-K | 3000 | 91 | 430 | 36 | 1233 | Download |
6.0 | MN-13G6 | MN-13G6-400-S-1201-K | 4000 | 91 | 430 | 36 | 1269 | Download |
8.9 | MN-15G9 | MN-15G9-300-H-1202-K | 3000 | 82 | 700 | 37 | 2750 | Download |
8.9 | MN-15G9 | MN-15G9-400-H-1202-K | 4000 | 82 | 700 | 37 | 2833 | Download |
8.9 | MN-15G9 | MN-15G9-300-S-1202-K | 3000 | 91 | 700 | 37 | 2338 | Download |
8.9 | MN-15G9 | MN-15G9-400-S-1202-K | 4000 | 91 | 700 | 37 | 2408 | Download |
12.0 | MN-18GC | MN-18GC-300-H-1203-K | 3000 | 82 | 1400 | 36 | 5450 | Download |
12.0 | MN-18GC | MN-18GC-400-H-1203-K | 4000 | 82 | 1400 | 36 | 5614 | Download |
12.0 | MN-18GC | MN-18GC-300-S-1203-K | 3000 | 91 | 1400 | 36 | 4633 | Download |
12.0 | MN-18GC | MN-18GC-400-S-1203-K | 4000 | 91 | 1400 | 36 | 4771 | Download |
Main features:
- Metal Halide Replacement (Power): 20W, 40W, 70W
- 8-12 degrees lighting application
- Light emitting surface (LES): 6.0, 8.9, 12.0 mm
- Color rendering index (CRI): 80-90 Ra
- Forward voltage (Vf): 33, 34, 36 V
Applications:
- Directional Track Lights, Par20/30/38
