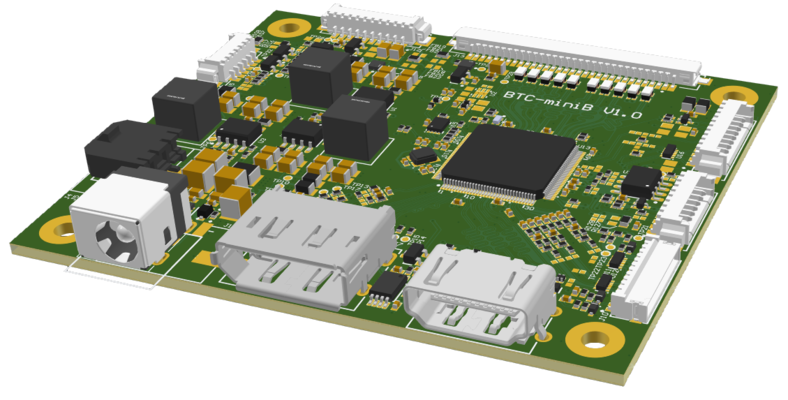

BTC-miniB
TFT Controller
This DisplayPort, HDMI and analog RGB to LVDS converter board accepts common video signals. DisplayPort 1.2, HDMI 1.4a and all backward compatible signals are supported as well as analog RGB. It generates all necessary control signals and panel data to drive TFT LCDs with VDD levels 3.3V, 5V or 12V.
This TFT controller board supports resolutions up to 1920x1200 (WUXGA) at a vertical refresh rate up to 60Hz. The user interface includes backlight, brightness, contrast, etc. adjustment by on-screen programming. For automatic backlight adjustment an ambient light sensor is supported. Several OSD functions can be managed via embedded I²C-interface or DDC/CI.
This board is available in different assembly configurations.
Tabs
Specification
| Input Interface | - Display Port 1.2 interface - HDMI 1.4a 1.0 interface - Analog RGB interface |
|---|---|
| Output Interface | Dual-LVDS 24-bit |
| Max. Resolution | 1920 * 1200 Pixels (WUXGA) @ 60Hz |
| Power Supply | 12V/DC & 24V/DC |
| Display Power Supply | 3.3 / 5 / 12 V |
| Power consumption | 0.1 W (standby) <1.3 W (active mode) |
| Dimensions [W × D × H] | 80 × 70 × 10 mm |
| Features | - Small outline - Flat design - I²C control interface (for e.g. light sensor) - Free GPIO, PWM and ADCs (for customized features) |
