DCMR-31 (EOL)
TFT Controller

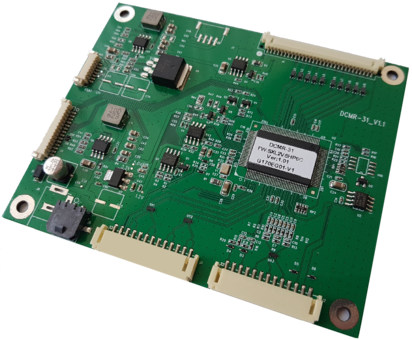

This DVI/HDMI and analog RBG to LVDS converter board accepts common video signals. Digital interfaces DVI 1.0, HDMI 1.4a and all backward compatible signals are supported as well as analog RGB. It generates all necessary control signals and panel data to drive TFT LCDs with VDD level 3.3V, 5V or 12V.
This TFT controller board supports resolutions up to 1920x1200 (WUXGA) at a vertical refresh rate up to 60Hz. The user interface includes brightness, contrast adjustment, etc. by on-screen programming.
Note: Successor model – DCMR-32
Tabs
Specification
| Input Interface |
- DVI 1.0 / HDMI 1.4a interface with HDCP - Analog RGB interface |
|---|---|
| Output Interface | Dual-LVDS 24-bit |
| Max. Resolution | 1920 * 1200 Pixels (WUXGA) @ 60Hz |
| Power Supply | 12 V |
| Display Power Supply | 3.3 / 5 / 12 V |
| Current consumption | 124 mA |
| Dimensions [W × D × H] | 110 * 90 * 7.7 mm |
| Features |
- Spread-Spectrum DPLL
|
