AMT Analog Resistive Touchscreen
und optionales Zubehör
Apex Material Technology Corp. (AMT) wurde 1998 mit einer Fabrik in Keelung, Taiwan gegründet. AMT liefert umfassende resistive und projiziert kapazitive (PCI oder PCAP) Touch-Produkte. Touch-Panels, -Controller und Software unterstützen verschiedene Betriebssysteme und erfüllen die Anforderungen vieler Anwendungen. AMT ist ISO 9001:2015, ISO 14001:2015 und ISO 50001:2011 zertifiziert.
Beck's Portfolio resistiver Touchsensoren umfasst Diagonalen von 3,85" bis 22". 4-, 5- oder 8-Draht Technologien sind vertreten.
Die Schnittstellen der Controller sind USB, I²C-bus oder RS-232. Einzeln oder als Kombination der verschiedenen Schnittstellen sind die Controller einfach zu integrieren.
| Size (cm) |
Size (inch) |
Part Number | Wire | ITO Glass (mm) | Total Thickness (mm) |
Tail Terminator | Outside Area (L*W, mm) |
Active Area (L*W, mm) |
Remark |
|---|---|---|---|---|---|---|---|---|---|
| 25.68 | 10.11 | 1070.0510 | 5 | 1.1 | 1.4 | FPC/AMPC | 235.0*143.0 | 223.72*126.28 | MOQ = 300 |
| 26.01 | 10.24 | 1070.0502 | 4 | 1.1 | 1.4 | FPC/ZIF | 235.0*145.8 | 223.2*133.7 | - |
| 26.01 | 10.24 | 1070.0497 | 5 | 1.1 | 1.6 | FPC/ ZIF | 235.0*145.8 | 223.2*133.7 | - |
| 26.39 | 10.39 | 1070.0470 | 4 | 1.6 | 1.9 | FPC/AMPC | 225.21*171.59 | 211.07*158.50 | - |
| 26.42 | 10.40 | 1070.0432 | 4 | 1.1 | 1.4 | FPC/ZIF | 225.55*172.95 | 211.2*158.8 | - |
| 26.52 | 10.44 | 1070.0487 | 4 | 1.1 | 1.4 | FPC/ZIF | 225.3*174.0 | 212.0*159.2 | - |
| 26.52 | 10.44 | 1070.0433 | 8 | 1.6 | 1.9 | FPC/AMPC | 238.8*188.5 | 212.1*159.3 | - |
| 26.52 | 10.44 | 1070.0498 | 5 | 1.1 | 1.4 | FPC/AMPC | 225.3*174.0 | 212.0*159.2 | - |
| 26.54 | 10.45 | 1070.0463 | 4 | 1.8 | 2.1 | FPC/AMPC | 231.4*177.9 | 212.2*159.4 | - |
| 27.10 | 10.67 | 1070.0459 | 5 | 1.8 | 2.3 | FPC/AMPC | 248.92*186.69 | 215.9*163.83 | - |
| 30.73 | 12.10 | 1070.0455 | 8 | 1.8 | 2.1 | FPC/AMPC | 268.0*204.0 | 246.0*185.0 | - |
| 30.78 | 12.12 | 1070.0471 | 4 | 1.8 | 2.1 | FPC/AMPC | 266.60*204.00 | 246.60*185.00 | - |
| 31.14 | 12.26 | 1070.0474 | 5 | 1.8 | 2.3 | FPC/AMPC | 270.99*205.51 | 248.87*187.4 | - |
| 33.78 | 13.30 | 1070.0488 | 4 | 1.8 | 2.1 | FPC/AMPL | 299.0*195.0 | 286.48*179.2 | MOQ = 200 |
| 38.02 | 14.97 | 1070.0479 | 8 | 2.8 | 3.2 | FPC/BERG | 333.6*257.5 | 304.1*228.1 | - |
| 37.92 | 14.93 | 1070.0507 | 5 | 1.8 | 2.2 | FPC/AMPC | 322.0*245.5 | 303.5*227.5 | - |
| 38.00 | 14.96 | 1070.0475 | 5 | 2.8 | 3.3 | FPC/AMPC | 326.5*253.5 | 304.0*228.0 | - |
| 38.02 | 14.97 | 1070.0472 | 4 | 1.8 | 2.1 | FPC/AMPC | 325.45*249.25 | 304.09*228.09 | - |
| 38.10 | 15.00 | 1070.0450 | 4 | 1.8 | 2.1 | HSC/AMPC | 330.0*254.0 | 304.1*228.1 | MOQ = 200 |
| 38.10 | 15.00 | 1070.0458 | 8 | 1.8 | 2.1 | FPC/AMPC | 332.6*257.5 | 304.1*228.1 | - |
| 38.43 | 15.13 | 1070.0482 | 5 | 2.8 | 3.3 | FPC/AMPC | 332.9*248.9 | 307.1*231.1 | - |
| 39.17 | 15.42 | 1070.0490 | 5 | 2.8 | 3.3 | FPC/AMPC | 344.0*222.0 | 332.2*207.6 | MOQ = 200 |
| 39.47 | 15.54 | 1070.0494 | 5 | 2.8 | 3.3 | FPC/AMPC | 359.3*209.47 | 344.23*193.54 | - |
| 43.21 | 17.01 | 1070.0509 | 5 | 1.8 | 2.1 | FPC/AMPC | 357.0*288.0 | 337.0*270.3 | - |
| 43.43 | 17.10 | 1070.0453 | 5 | 2.8 | 3.1 | FPC/AMPC | 357.0*288.0 | 337.0*270.3 | MOQ = 100 |
| 43.48 | 17.12 | 1070.0467 | 8 | 1.8 | 2.1 | FPC/AMPC | 365.0*295.0 | 339.0*272.4 | - |
| 43.48 | 17.12 | 1070.0480 | 8 | 2.8 | 3.1 | FPC/BERG | 365.0*295.0 | 339.0*272.4 | - |
| 43.48 | 17.12 | 1070.0503 | 5 | 2.8 | 3.2 | FPC/AMPC | 365.0*295.0 | 339.0*272.4 | - |
| 43.56 | 17.15 | 1070.0476 | 5 | 2.8 | 3.3 | FPC/AMPC | 365.4*290.18 | 340.0*272.4 | - |
| 47.09 | 18.54 | 1070.0495 | 5 | 2.8 | 3.3 | FPC/AMPC | 430.37*254.6 | 410.8*230.4 | MOQ = 100 |
| 48.18 | 18.97 | 1070.0481 | 8 | 2.8 | 3.2 | FPC/BERG | 404.2*330.0 | 376.3*301.05 | MOQ = 100 |
| 48.36 | 19.04 | 1070.0491 | 5 | 2.8 | 3.3 | FPC/AMPC | 428.0*278.0 | 410.0*256.5 | MOQ = 100 |
| 48.49 | 19.09 | 1070.0477 | 5 | 2.8 | 3.3 | FPC/AMPC | 404.2*330.0 | 378.5*303.0 | - |
| 54.00 | 21.26 | 1070.0468 | 5 | 2.8 | 3.3 | FPC/AMPC | 472.69*355.09 | 431.8*324.61 | - |
| 54.86 | 21.60 | 1070.0508 | 5 | 2.8 | 3.3 | FPC/AMPC | 495.6*292.2 | 477.64*269.11 | MOQ = 100 |
| 9.78 | 3.85 | 1070.0416 | 4 | 1.1 | 1.4 | FPC/ZIF | 91.3*72.0 | 79.0*58.0 | - |
| 14.53 | 5.72 | 1070.0456 | 4 | 1.1 | 1.4 | FPC/ZIF | 132.5*104.7 | 116.17*87.37 | - |
| 14.63 | 5.76 | 1070.0448 | 4 | 1.1 | 1.4 | HSC/ZIF | 137.0*109.0 | 117.0*88.1 | - |
| 14.66 | 5.77 | 1070.0417 | 4 | 1.6 | 1.9 | Integral/AMPC | 138.6*110.0 | 117.2*88.4 | MOQ = 600 |
| 14.94 | 5.88 | 1070.0419 | 4 | 1.1 | 1.4 | Integral/AMPC | 140.0*104.0 | 119.2*90.3 | - |
| 14.94 | 5.88 | 1070.0420 | 4 | 1.1 | 1.4 | FPC/ZIF | 140.0*104.0 | 119.2*90.3 | - |
| 14.94 | 5.88 | 1070.0421 | 4 | 1.1 | 1.4 | FPC/AMPC | 140.0*104.0 | 119.2*90.3 | - |
| 16.26 | 6.40 | 1070.0445 | 4 | 1.1 | 1.4 | FPC/ZIF | 146.3*114.55 | 130.0*97.5 | - |
| 16.33 | 6.43 | 1070.0423 | 4 | 1.6 | 1.9 | Integral/AMPC | 152.9*120.0 | 130.6*98.4 | - |
| 16.46 | 6.48 | 1070.0469 | 5 | 1.1 | 1.5 | FPC/AMPC | 146.3*114.55 | 130.6*98.4 | MOQ = 600 |
| 16.56 | 6.52 | 1070.0501 | 4 | 1.1 | 1.4 | FPC/ZIF | 153.0*118.0 | 132.48*99.36 | - |
| 17.78 | 7.00 | 1070.0478 | 4 | 1.1 | 1.4 | FPC/ZIF | 165.0*104.0 | 152.4*91.44 | - |
| 17.78 | 7.00 | 1070.0425 | 4 | 1.1 | 1.4 | FPC/ZIF | 166.0*100.0 | 155.0*88.0 | MOQ = 800 |
| 17.98 | 7.08 | 1070.0496 | 5 | 1.1 | 1.6 | FPC/AMPC | 166.0*105.0 | 154.4*92.1 | - |
| 20.32 | 8.00 | 1070.0493 | 4 | 1.1 | 1.4 | FPC/ZIF | 183.0*141.0 | 162.6*122.1 | - |
| 21.49 | 8.46 | 1070.0505 | 5 | 1.8 | 2.2 | FPC/AMPC | 186.95*149.50 | 171.88*129.16 | MOQ = 400 |
| 21.54 | 8.48 | 1070.0429 | 4 | 1.1 | 1.4 | FPC/ZIF | 188.9*141.7 | 172.0*129.5 | - |
| 21.54 | 8.48 | 1070.0461 | 4 | 1.8 | 2.1 | FPC/ZIF | 188.9*141.7 | 172.0*129.5 | - |
| 21.54 | 8.48 | 1070.0486 | 4 | 1.1 | 1.4 | FPC/ZIF | 188.9*141.7 | 172.0*129.5 | - |
| 21.59 | 8.50 | 1070.0506 | 4 | 1.1 | 1.4 | FPC/ZIF | 203.5*133.8 | 185.8*111.88 | - |
| 22.71 | 8.94 | 1070.0489 | 4 | 1.1 | 1.4 | FPC/ZIF | 213.36*129.55 | 196.07*114.4 | MOQ = 300 |
| Size (cm) |
Size (inch) |
Part Number | Wire | ITO Glass (mm) | Total Thickness (mm) |
Tail Terminator | Outside Area (L*W, mm) |
Active Area (L*W, mm) |
Remark |
| Partnumber | Interface USB |
Interface RS232 |
Interface I²C |
Interface UART |
Sensor type | Controller | Dimensions (mm) | Wires | Connector | Cable connector | PenMount No. | Note | Image |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1070.0068.01 | resistive | Silicon Labs | 60*26 | 4 | ZIF | USB Type A | PM6500A8 | including 1500 mm cable | Noch kein Bild | ||||
| 1070.0068.02 | resistive | Silicon Labs | 60*26 | 4 | AMPC | USB Type A | PM6500A8 | including 1500 mm cable | Noch kein Bild | ||||
| 1070.0068.03 | resistive | Silicon Labs | 60*26 | 8 | AMPC | USB Type A | PM6500A8 | including 1500 mm cable | Noch kein Bild | ||||
| 1070.0068.04 | resistive | Silicon Labs | 60*26 | 5 | AMPC | USB Type A | PM6500A5 | including 1500 mm cable | Noch kein Bild | ||||
| 1070.0068.11 | resistive | Silicon Labs | 60*26 | 4 | ZIF | 9Pin D-Sub | PM6500A8 | including 450 mm cable | Noch kein Bild | ||||
| 1070.0068.12 | resistive | Silicon Labs | 60*26 | 4 | AMPC | 9Pin D-Sub | PM6500A8 | including 450 mm cable | Noch kein Bild | ||||
| 1070.0068.13 | resistive | Silicon Labs | 60*26 | 8 | AMPC | 9Pin D-Sub | PM6500A8 | including 450 mm cable | Noch kein Bild | ||||
| 1070.0068.14 | resistive | Silicon Labs | 60*26 | 5 | AMPC | 9Pin D-Sub | PM6500A5 | including 450 mm cable | Noch kein Bild | ||||

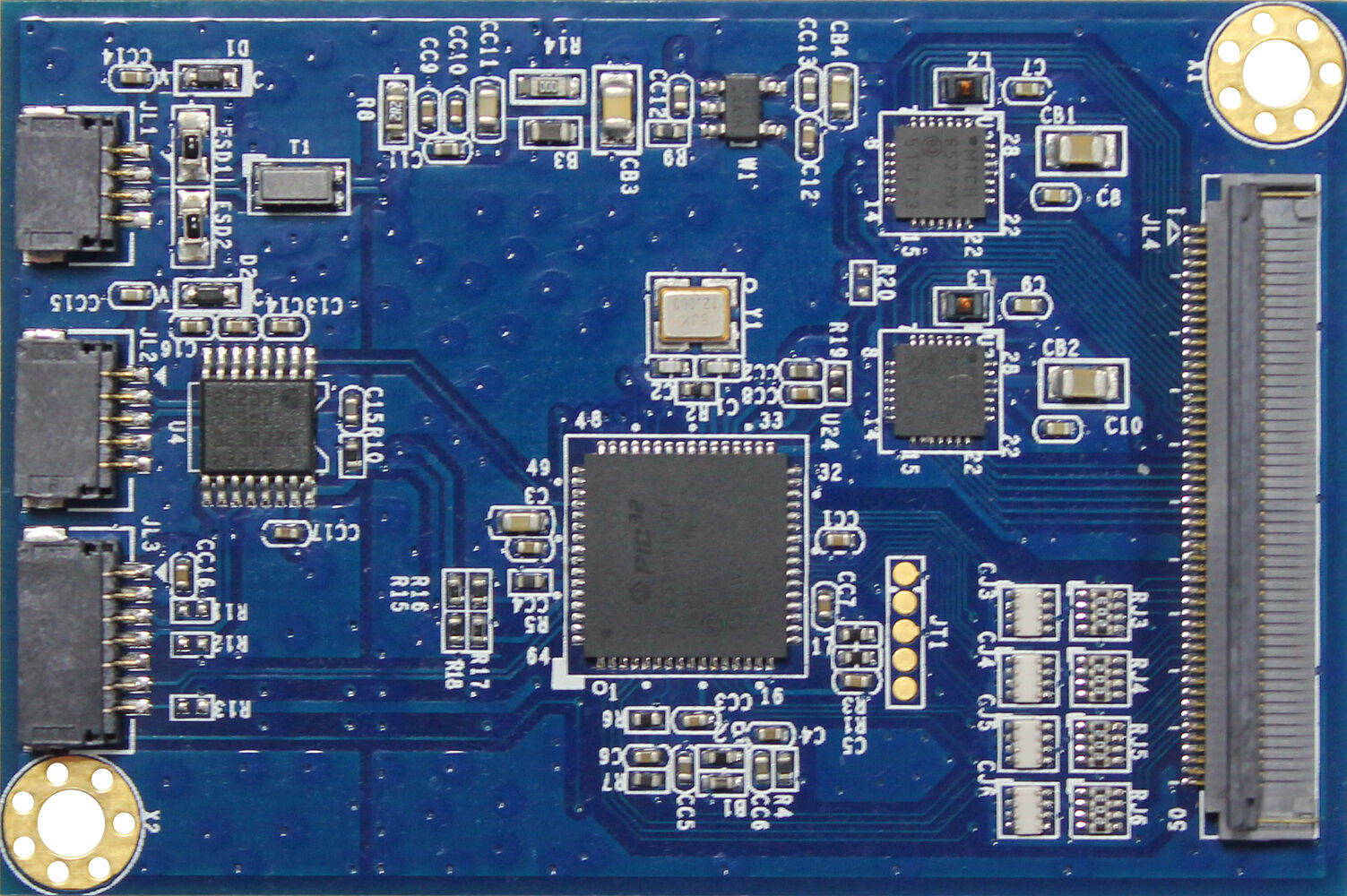

| 1058.6023 | pcap | Microchip | 60*40 | PM1210 | 5.0" ~ 7.9" | Bild anzeigen | |||||||

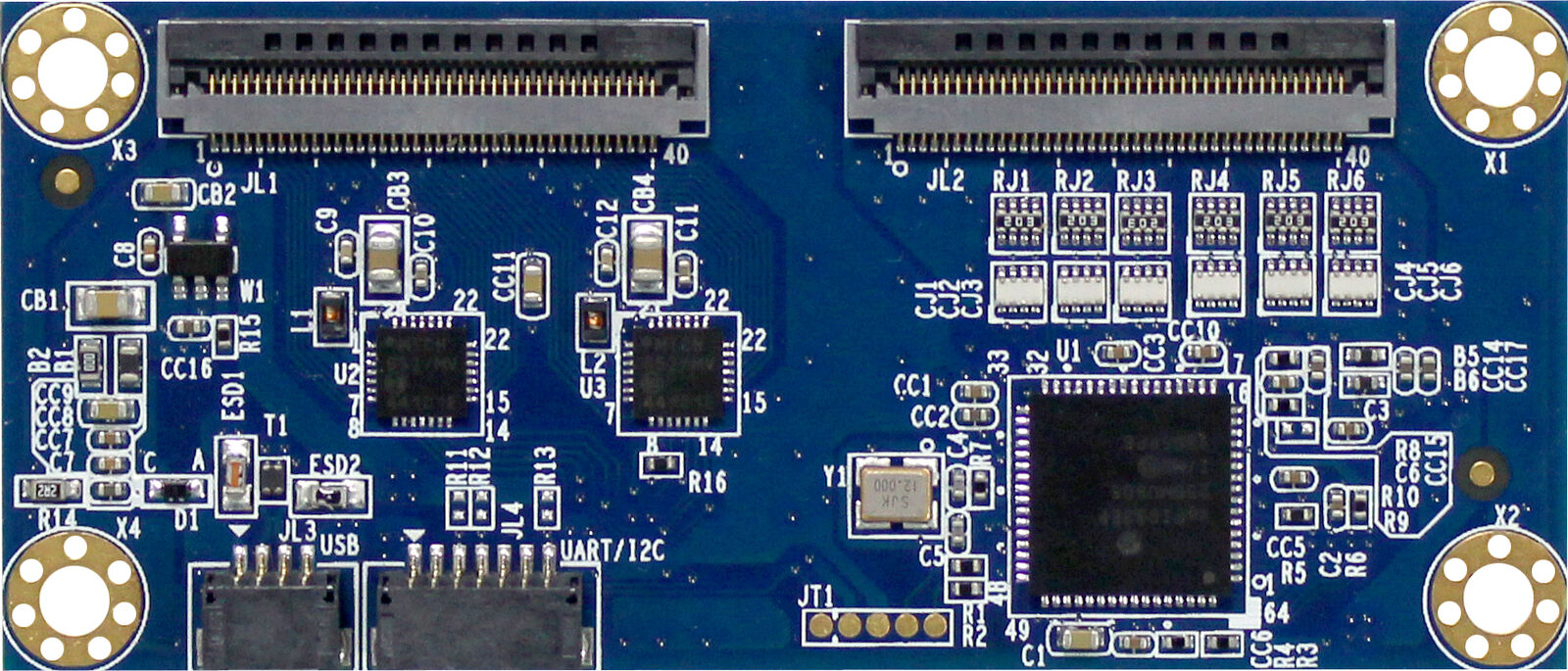

| 1058.6020 | pcap | Microchip | 70*30 | PM1310 | 8.0" ~ 10.5" | Bild anzeigen | |||||||

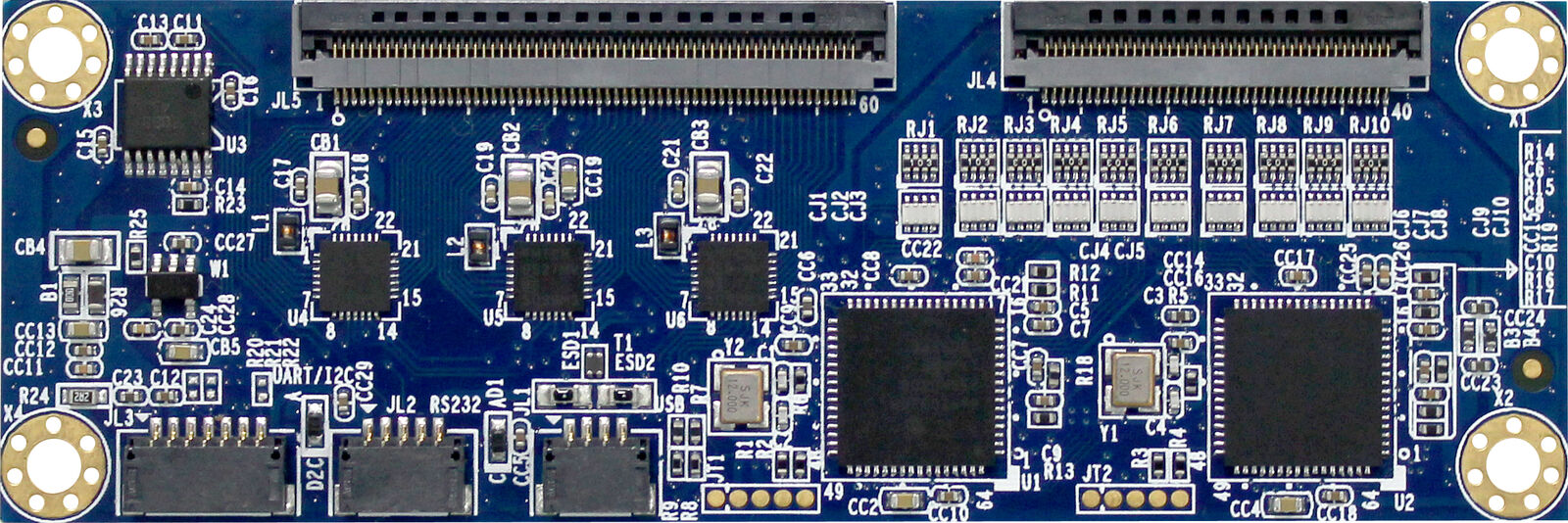

| 1058.6022 | pcap | Microchip | 90*30 | PM1410 | 10.5" ~ 15.6" | Bild anzeigen | |||||||
| 1058.6033 | pcap | Microchip | 90*30 | PM1415I | 10.5" ~ 15.6" | Noch kein Bild | |||||||
| 1058.6034 | pcap | Microchip | 90*30 | PM1415U | 10.5" ~ 15.6" | Noch kein Bild | |||||||

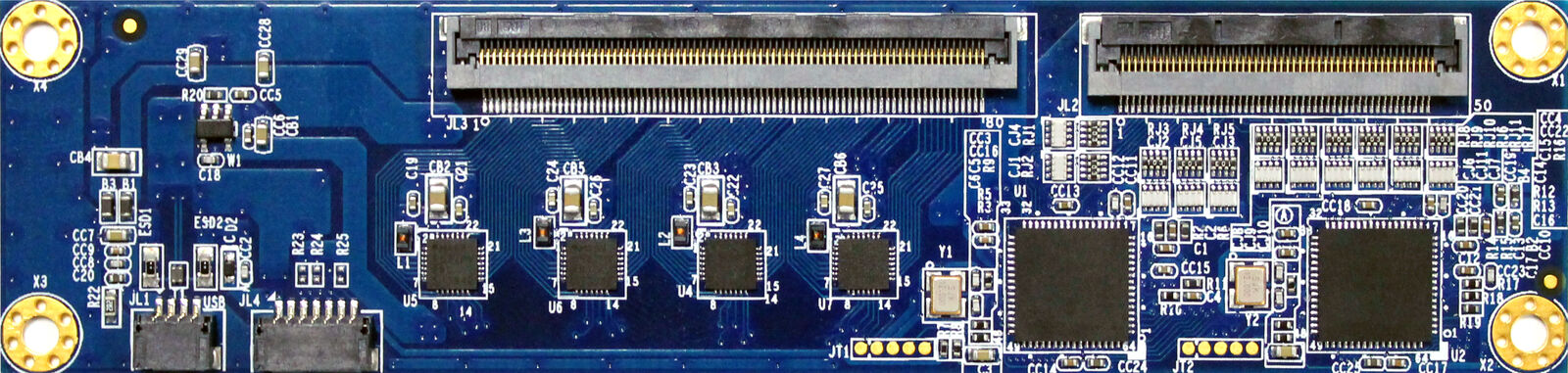

| 1058.6025 | pcap | Microchip | 125*30 | PM1710 | 15.6" ~ 24.0" | Bild anzeigen | |||||||
| 1058.6026 | pcap | Microchip | 125*30 | PM1711 | 15.6" ~ 24.0" | Bild anzeigen | |||||||
| 1058.6035 | pcap | Microchip | 90*30 | PM1715I | 15.6" ~ 24.0" | Noch kein Bild | |||||||
| 1058.6036 | pcap | Microchip | 90*30 | PM1715U | 15.6" ~ 24.0" | Noch kein Bild |
| Partnumber | PenMount No. | Note |
|---|---|---|
| 1058.6003 | 94-52014-000 | RS232 cable mini |
| 1058.6004 | 94-56002-000 | SPI/I2C cable |
| 1058.6005 | 94-53018-000 | USB cable grounded |
| 1058.6030 | 94-4101A-000 | I²C to USB Bridge Board |
| 1058.6031 | 94-41020-000 | COF to USB cable Converter Board |
