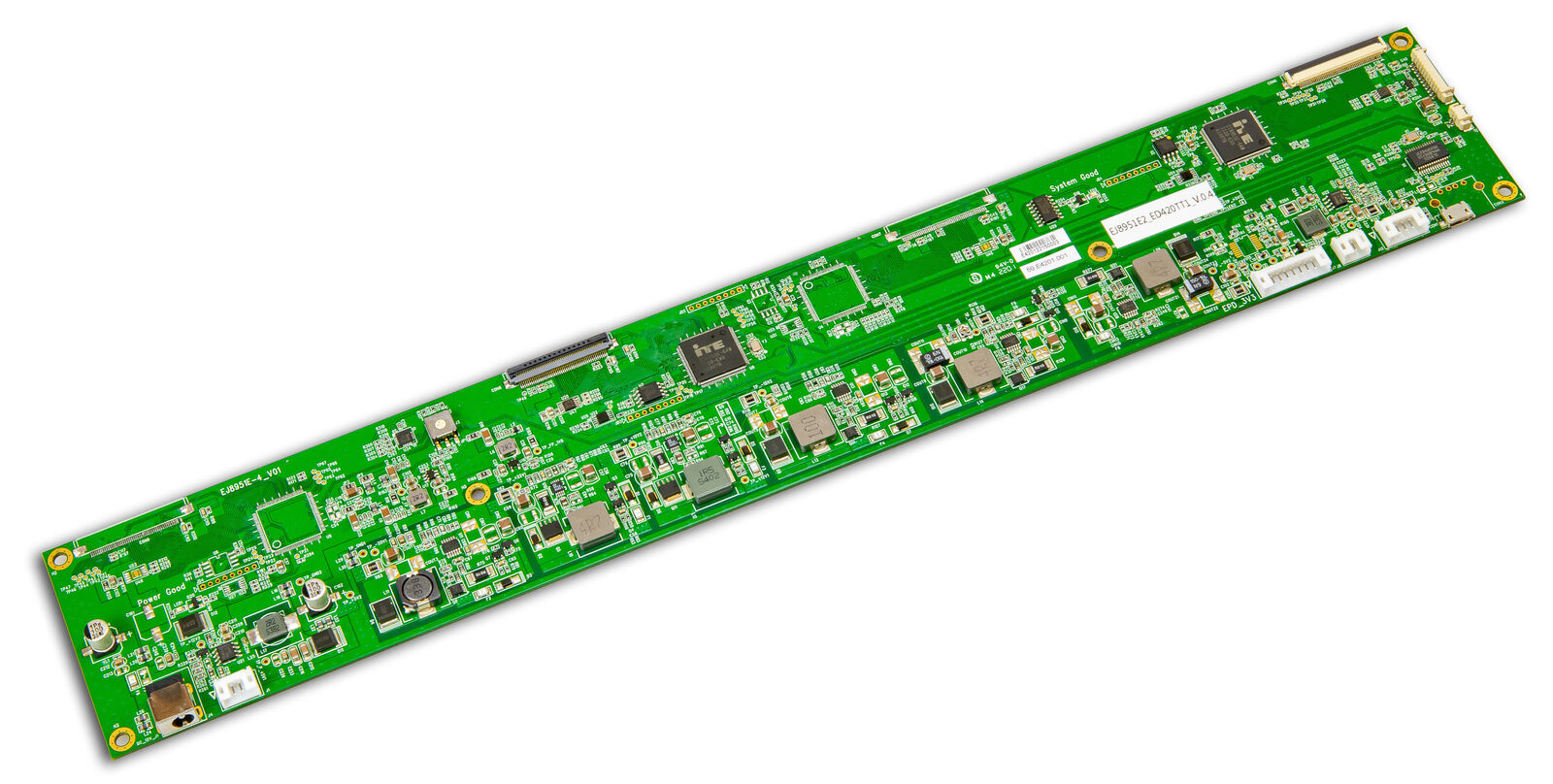

EJ8951E-2
EPD Controller
EJ8951E-2 is designed for driving Electrical Paper Display (EPD) in size 42" with 16 grey levels support, such as ED420TT5, ED420TT3 and ED420TT1.
Tabs
Specification
| Resolution, max. | 2880 * 2160 |
|---|---|
| Output Signal | 2 × TTL |
| Outline Dimensions | 400 * 65 mm |
| Driving Voltage | 12.0 V |
| Update Possibilities | USB |
| Power | 13.3 W |
| Power, sleep mode | 1.2 W |
| Total Thickness | 12 mm |
| Total Weight | 40 g |
| Grey Level Support | 16 |
Tabs
Downloads
| Specification | Download |
|---|---|
| Application Note for Setting Up a Raspberry Pi | Download |
| C++ Demo Code for Raspberry Pi (ejump_rp_usb) | Download |
| C++ Demo Code for Raspberry Pi (ejump_rp_vcom) | Download |
| C++ Demo Code for Raspberry Pi (ejump_rp_waveform) | Download |
| libtcon-dev_usb.so.2.0.4 | Download |
| C++ API Guideline by eJump | Download |
| Information about E-Paper Waveform Modes | Download |
