Ready Solution
E-Paper Module
| Size (cm) |
Size (inch) |
Manufacturer | Type | Resolution (X*Y) |
Grey level | Interface | Power Supply | Outline (H*V*D, mm) |
Weight (kg) |
Remark | Image |  |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 79.25 | 31.2 | RoadAds | RA-EPD32 | 2560*1440 | 4-bit monochrome (16 Grey Levels) | WLAN/LTE/GPS | 12-24V | 870.0*525.0*36.0 | 15000 | Signage, battery connection possible, 7mm cover lense, IP6K9K housing made of aluminum and stainless steel | Bild anzeigen | Download |
| 162.56 | 64.0 | RoadAds | RA-EPD64 | 5120*2280 | 4-bit monochrome (16 Grey Levels) | WLAN/LTE/GPS | 12-24V | 1662.0*906.6*36.0 | 46000 | Signage, battery connection possible, 7mm cover lense, IP6K9K housing made of aluminum and stainless steel | Bild anzeigen | Download |

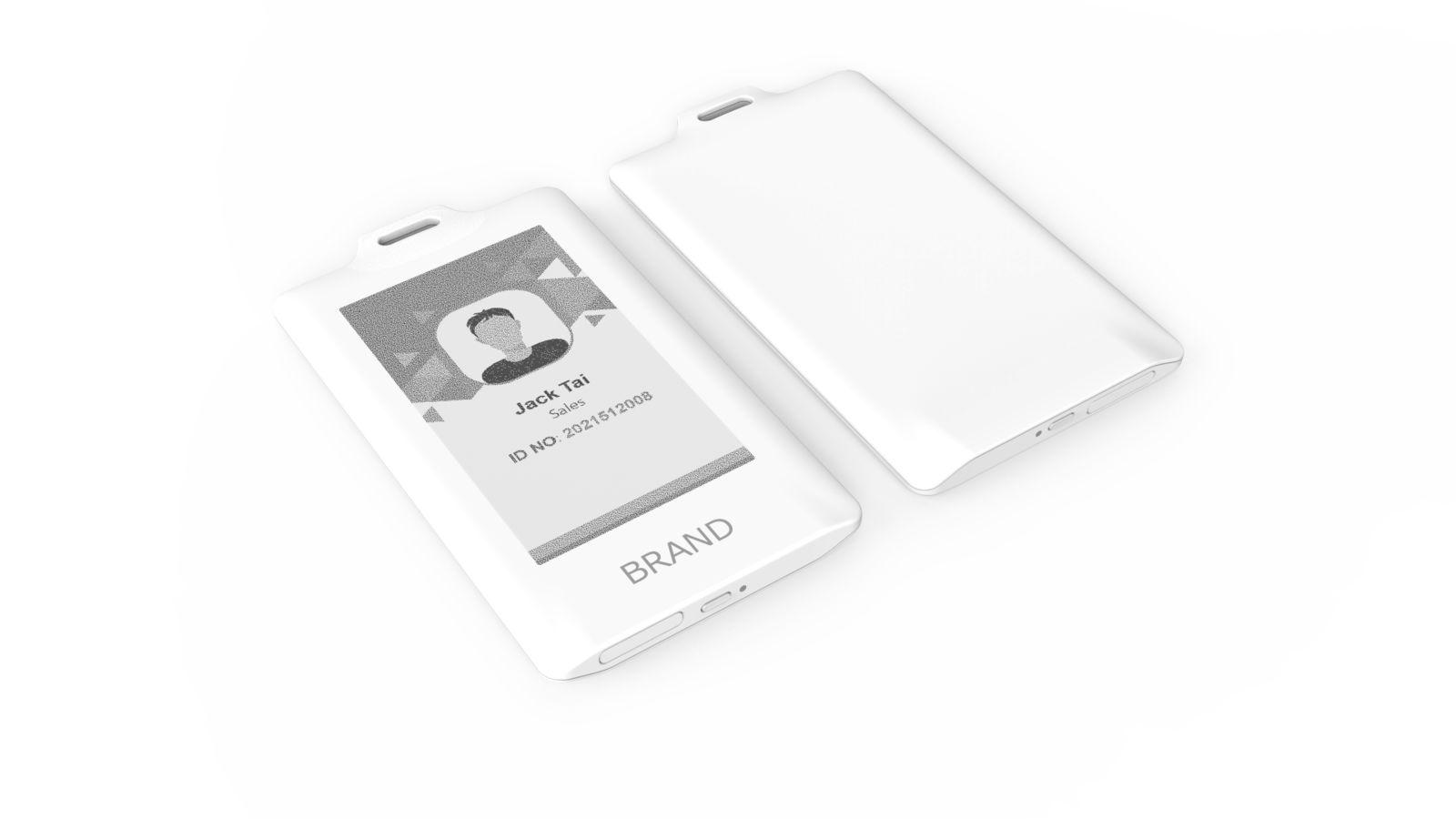

| 9.40 | 3.7 | Netronix | H37N0D | 280*480 | 2-bit monochrome (4 Grey Levels) | Bluetooth | 90mAh lithium | 115.2*68.2*7.3 | 53 | Badge, water/dust-resistant. USB-C for battery recharge | Bild anzeigen | Download |

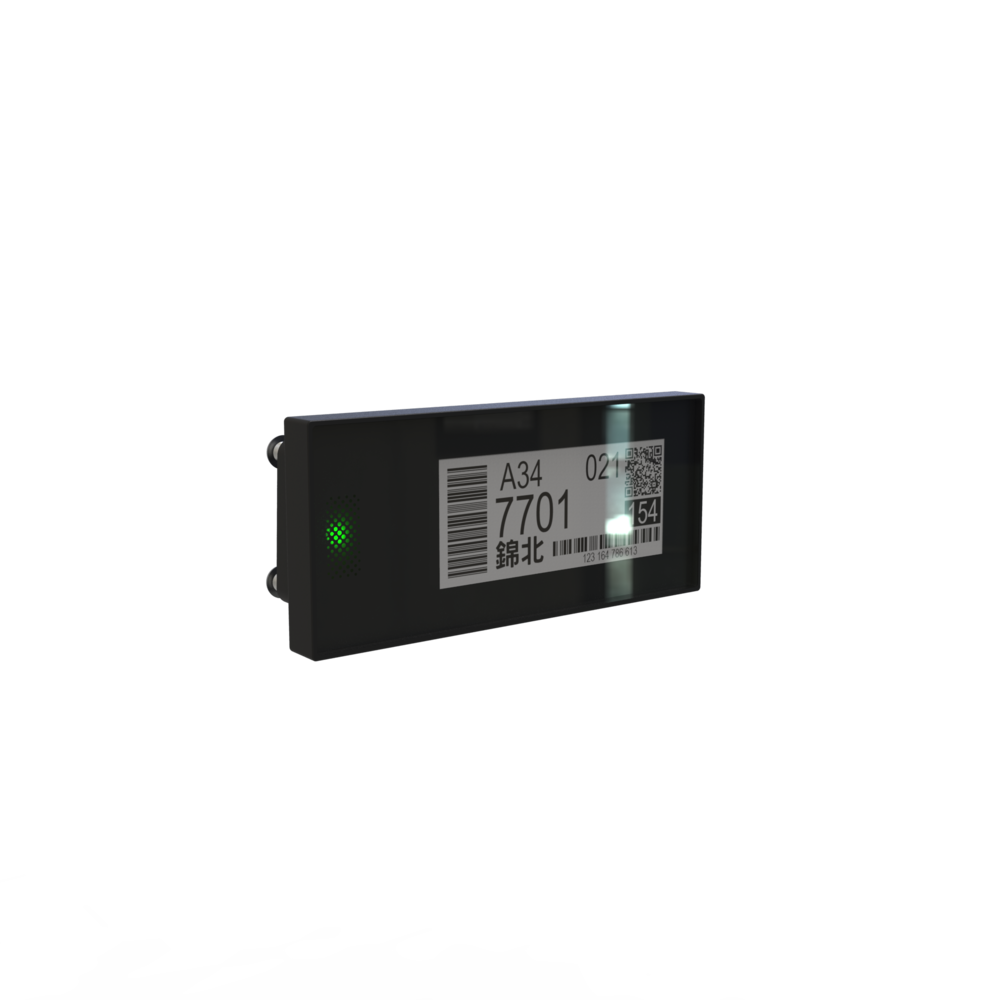

| 7.37 | 2.9 | Netronix | D2500C | 296*128 | 1-bit monochrome (black and white) | NFC | NFC | 110.88*49.62*26.91 | 100 | Logistic tag, IP54 | Bild anzeigen | Download |
| 18.54 | 7.3 | Netronix | P7320E | 800*480 | 7-colors performance, E Ink Palette | Bluetooth 5.1 / ZigBee (2.4GHz) | 2500mAh lithium | 180.55*133.85*7.9 | 260 | Table card, Android, USB-C for battery recharge, +15 ..+35°C | Bild anzeigen | Download |
| 80.01 | 31.5 | Netronix | SA3P02 | 2560*1440 | 60.000 colors, E Ink Spectra 6 | 2.4G WiFi/LTE/MicroSD/USB-C | AC adapter / Int. batteries | 707.9*413.2*23.5 | 5100 | Signage, Android 12, 1.8mm glass with AR coating | Noch kein Bild | Download |
| 33.78 | 13.3 | Netronix | SA1P02 | 1200*1600 | 60.000 colors, E Ink Spectra 6 | 2.4G WiFi/LTE/MicroSD/USB-C | AC adapter / Int. batteries | 215.8*292.9*8.86 | 650 | Signage, Android 12, 1.8mm glass with AR/AG coating | Noch kein Bild | Download |
| 79.25 | 31.2 | EcoDisplays | ECO-312 | 2560*1440 | 4-bit monochrome (16 Grey Levels) | Mobile network/WiFi/Ethernet | 12V DC | 725*425*32 | 8000 | Signage, solar panel power, IP54, CMS | Bild anzeigen | Download |
| 106.68 | 42.0 | EcoDisplays | ECO-420 | 2160*2880 | 4-bit monochrome (16 Grey Levels) | Mobile network/WiFi/Ethernet | 12V DC | 676*892*32 | 11000 | Signage, solar panel power, IP54, CMS | Bild anzeigen | Download |
