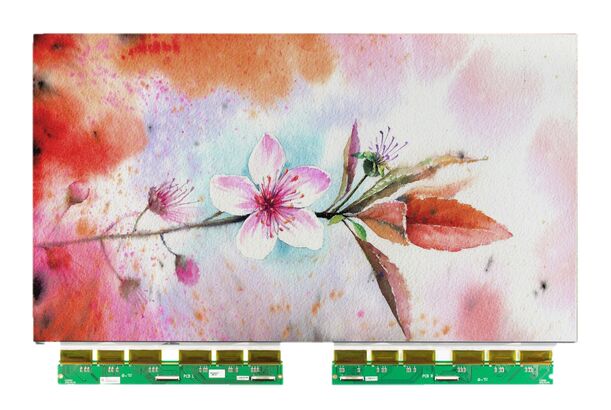

EC312TT2
Active Matrix E-Paper Display
EC312TT2 is a reflective electrophoretic E Ink® technology display module based on TFT active matrix with color filter design.
It has 31.2" active area with 1280 x 720 pixels, the display is capable to display 4096 colors depending on the display controller and the associated waveform.
Tabs
Specification
| Size | 31.2 inch |
|---|---|
| Resolution (HxV) | 1280 * 720 |
| Active Area | 691.2 * 388.8 mm |
| Outline Dimensions | 697.2 * 402.8 mm |
| Dpi | 47 |
| E Ink Film | Triton |
| Refresh Time | 980 ms |
| Backplane | Glass |
| Total Thickness | 1.35 mm |
| Total Weight | 800 g |
| Grey Level | 16 |
| Front Light | - |
| Surface Treatment | Hard Coat |
| Partial update | yes |
Tabs
Driving kits
| Product | Image Update Possibility | Output Signal | Resolution, max. | Power Supply | Outline | Remark |
|---|---|---|---|---|---|---|
| EJ8951E-4 | USB | 4 × TTL | 2880 * 2160 | 12 V / 5 A | 400 * 65 | API 2.0 |
