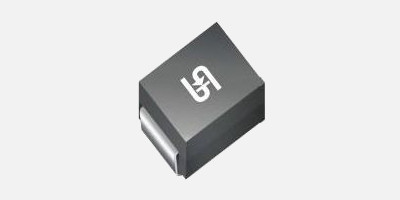

5kW, 16 – 100V Surface Mount Transient Voltage Suppressor

Taiwan Semiconductor stellt offiziell seine 5000 Watt High Power Surge Capability Uni-Directional TVS Dioden Serie im DO-214AB (SMC) Gehäuse mit zuverlässiger thermischer Leistung bis zu TJMAX = 175 °C vor.

TSC's 5.0SMDJ Serie bietet insgesamt 26 neue Teilenummern mit Arbeitsabstandspannungen von 16 V bis 100 V, hervorragende Klemmfähigkeit von 26 V bis 162 V.

Features:

  • 5000 Watt peak pulse power capability at 10/1000µs waveform
  • Reliable thermal performance
  • Fast response time: Typically less than 1.0ps
  • Ideal for automated placement
  • Glass passivated junction
  • Excellent clamping capability
  • Built-in strain relief
  • Excellent clamping capability
  • RoHS compliant
  • Halogen-free
  • AEC-Q101 qualified
  • Weight: 0.30g (approximately)


Applications:

  • Immunization of sensitive devices in
    - automotive
    - telecommunications
    - consumer electronics
    - industrial equipment from electrostatic discharge (ESD)
    - transient voltages induced by load switching
    - lightning on ICs, MOSFETS and Sensors
