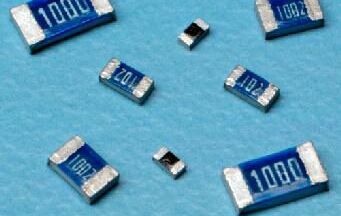

KOA’s RK73G-series thick film resistors are designed for high precision applications using standard thick film technology.
Compared to KOA’s general-purpose RK73-series, the new RK73G-series has an even better T.C.R. of ±50 ppm/K and its low resistance tolerance of ±0.25 % is ideal for precision designs such as high-accuracy sensing or voltage detection circuits in automotive and industrial applications.
The RK73G-series in the new tolerance of ±0.25 % covers the resistance range from 10O to 1MO and is available from 0402 to 1206 inch size.
Features:
- ±0.25% to ±1% tolerance
- ±50 ppm/K
- 10O to 1 MO
- 0.05 W (0201 inch) to 0.25 W (1206 inch)
- Improved high temperature reliability (operating temperature -55°C to +155°C)
- AEC-Q200 qualified
- Anti-Sulfuration type also available (RK73G_RT)
Applications:
- Automotive
- Motor controls
- AC adapters
- Switching boards
- Industrial automation
- Metering
- Router / Switches
- LED lighting
- Consumer electronics
- VCO
