KOA's High Precision Thick Film Resistor ±0.25 %, ±50 ppm/K

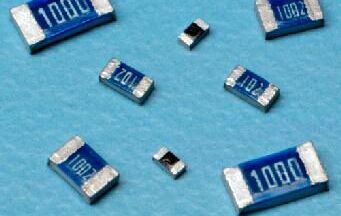

KOA’s RK73G-series thick film resistors are designed for high precision applications using standard thick film technology.

Compared to KOA’s general-purpose RK73-series, the new RK73G-series has an even better T.C.R. of ±50 ppm/K and its low resistance tolerance of ±0.25 % is ideal for precision designs such as high-accuracy sensing or voltage detection circuits in automotive and industrial applications.

The RK73G-series in the new tolerance of ±0.25 % covers the resistance range from 10O to 1MO and is available from 0402 to 1206 inch size.

Features:

  • ±0.25% to ±1% tolerance
  • ±50 ppm/K
  • 10O to 1 MO
  • 0.05 W (0201 inch) to 0.25 W (1206 inch)
  • Improved high temperature reliability (operating temperature -55°C to +155°C)
  • AEC-Q200 qualified
  • Anti-Sulfuration type also available (RK73G_RT)

Applications:

  • Automotive
  • Motor controls
  • AC adapters
  • Switching boards
  • Industrial automation
  • Metering
  • Router / Switches
  • LED lighting
  • Consumer electronics
  • VCO
