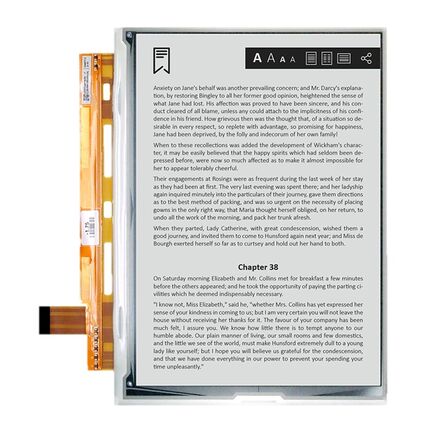

ED097TC2
Active Matrix E-Paper Display
ED097TC2 is a reflective electrophoretic E Ink technology display module based on active matrix TFT substrate.
It has 9.7" active area with 1200 × 825 pixels, and the display is capable to display images at 2-16 gray levels (1-4 bit) depending on the display controller and the associated waveform file it used.
Tabs
Specification
| Size | 9.7 inch |
|---|---|
| Resolution (HxV) | 1200 * 825 |
| Active Area | 202.80 * 139.43 mm |
| Outline Dimensions | 218.80 * 156.43 mm |
| Dpi | 150 |
| E Ink Film | Carta 1.2 |
| Refresh Time | 450 ms |
| Backplane | Glass |
| Total Thickness | 1.15 mm |
| Total Weight | 80 g |
| Grey Level | 16 |
| Front Light | - |
| Surface Treatment | Anti-glare |
