AC253TT1
Active Matrix E-Paper Display

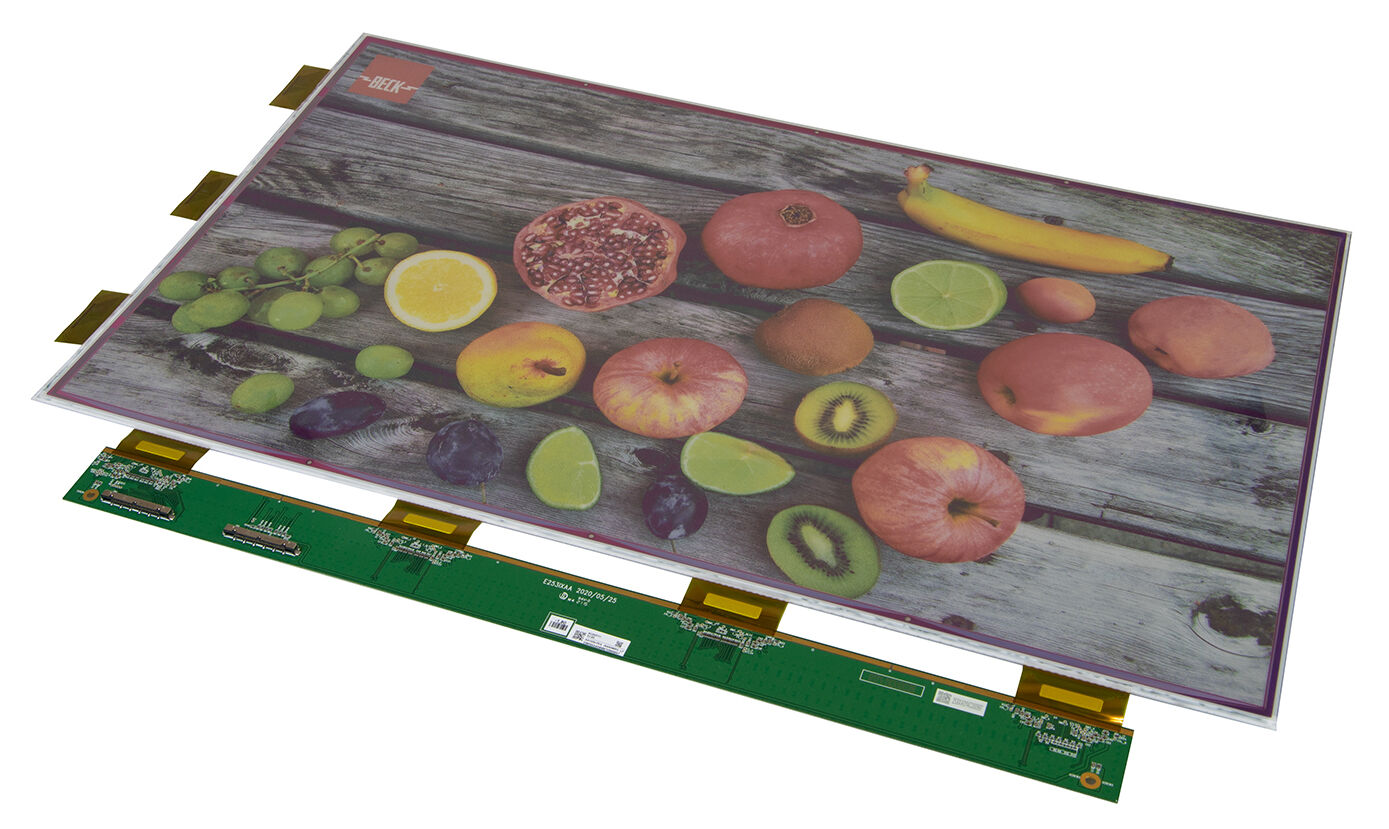

AC253TT1 is a reflective electrophoretic E Ink® Advanced Color ePaper (ACeP® E Ink Gallery) technology display module based on active matrix TFT substrate.
The diagonal length of active area is 25.3” and contains 3200 × 1800 pixels. The display is capable to display full color images depending on the display controller and the associated lookup table used. The recommended operating temperature should be kept from +15°C to +35°C.
Tabs
Specification
| Size | 25.3 inch |
|---|---|
| Resolution (HxV) | 3200 * 1800 |
| Active Area | 560.00 * 315.00 mm |
| Outline Dimensions | 576.50 * 333.00 mm |
| Dpi | 150 |
| E Ink Film | E Ink Gallery™ 4000 |
| Refresh Time | 25 s |
| Backplane | Glass |
| Total Thickness | 0.953 mm |
| Total Weight | 426 g |
| Number of colors | Full Color |
| Interface | Mini-LVDS |
| Front Light | - |
| Surface Treatment | Anti-glare |
| Operational temperature range | +15°C ~ +35°C |
| New nomenclature | AA1020-PEA |
Tabs
Driving kits
| Product | Image Update Possibility | Output Signal | Resolution, max. | Power Supply | Outline | Remark |
|---|---|---|---|---|---|---|
| EJ1000C | USB | Mini-LVDS | 3200 * 1800 | 12 V | 400 * 65 mm | API 2.0 |
| L-T1000 | USB | Mini-LVDS | 8192 * 8192 | 12 V | 160 * 150 mm | External temperature sensor’s board |
