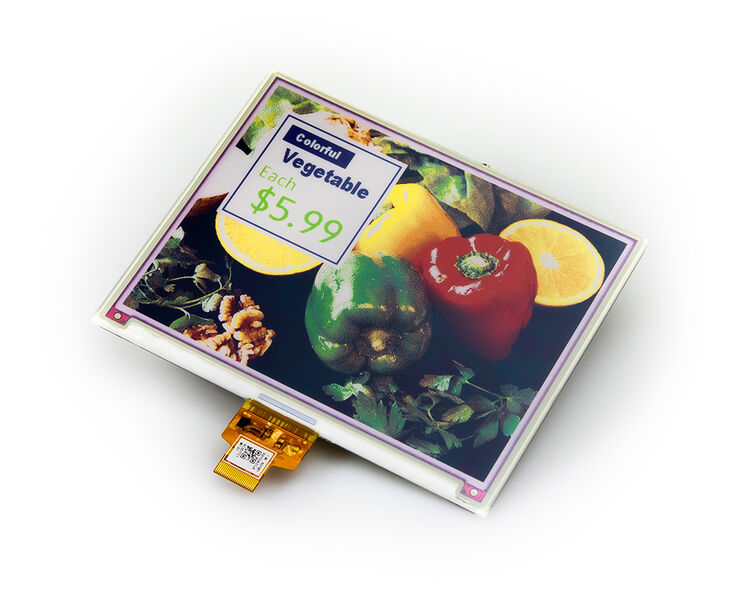

AC057TC1 (AB1024-EGA) is a reflective electrophoretic E Ink® technology display module on an active matrix TFT substrate.
The diagonal length of the active area is 5.65” and contains 600 × 448 pixels. The panel is capable of displaying 7-colors of black, white, red, yellow, blue, green, and orange images depending on the associated lookup table used. The circuitry on the panel includes an integrated gate and source driver, timing controller, oscillator, DC-DC boost circuit, and memory to store the frame buffer and lookup tables, and additional circuitry to control VCOM and BORDER settings.
