Round LCDs, TFTs, OLEDs are successfully integrated in dozen of applications. The most popular applications are wearables, smart watches, smart buttons and labels.

Normally a continuous power supply is not used in such cases and the system operates by solar energy or battery as a power source. It means the design has to be low-power and effective. The e-paper displays are the best choice for such applications.

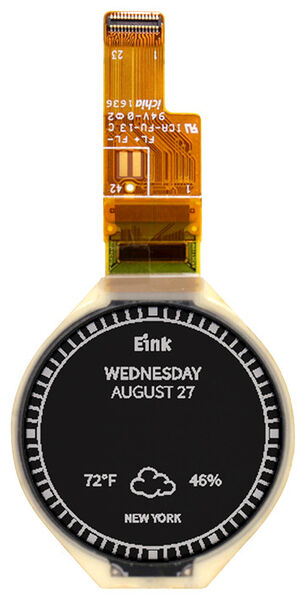

ET011TT2 is a reflective electrophoretic E Ink technology display module based on active matrix TFT and plastic substrate.

It is 1.1" with 240 × 240 pixels and an active area with diameter 27.96 mm.

The display is capable of showing images at 4 gray levels (2 bit) depending on the display controller and the associated waveform file.

The communication interface is SPI.

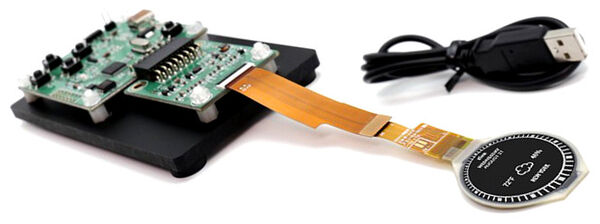

The EPD 1.1" is available from our warehouse in Germany, upon request as a demonstration kit with driving board.

For details please contact the Beck team.
