The taiwanese company PANJIT International Inc. has been manufacturing semiconductor components for the industry since 1986. Today, the further development and production of its own semiconductor products takes place at several locations in Asia: PANJIT owns two front-end and two back-end factories, of one each in China and one in Taiwan. There, the complete manufacturing process from wafer production to testing takes place in the company‘s own production facilities.
PANJIT‘s focus is on the automotive, industrial, energy and consumer goods sectors. As a special feature PANJIT has SiC Schottky diodes (SiC = silicon carbide) in its program. PANJIT can show the industry-standard certificates such as ISO 9001, ISO 14001, OHSAS 18001 and IATF 16949.
BECK Elektronik and PANJIT are bound in partnership for more than 15 years.
Tabs

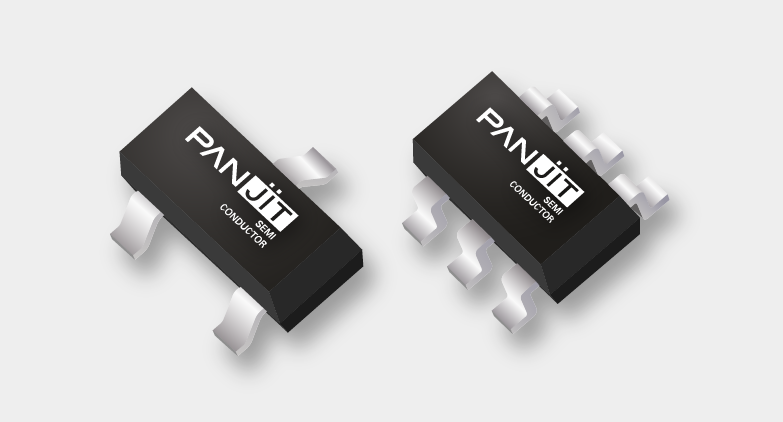

Bipolar Junction Transistors / BJT
A Bipolar Junction Transistor has either a npn-structure or a pnp-structure and therefore comprises two subsequent pn-junctions. The currents are combined negatively charged electrons and positively charged holes as charge carriers. Bipolar junction transistors are usually used in two different types of applications: switching and amplification.
- PANJIT’s Bipolar Transistor is a current controlling electronic device, which amplifies a weak signal to a signal source with a large amplitude value. It is used to amplify the current or to control the current.
Product overview of General Purpose Bipolar Transistors of our partner PANJIT International Inc.
- PANJIT’s Low Voltage Bipolar Transistor is especially designed for low-voltage high-speed conversion applications. The outstanding electronic characteristic and the low operating temperature is the key to control the power efficiently, which can improve the power efficiency and extend the battery power capacity.
Product overview of Low VCE(sat) Transistors of our partner PANJIT International Inc.
![[Translate to English:] Panjit Bipolar Junction Transistor](/fileadmin/_processed_/6/1/csm_Panjit-Bipolar-Junction-Transistor_97c6ac014d.png "[Translate to English:] Panjit Bipolar Junction Transistor")
Tabs

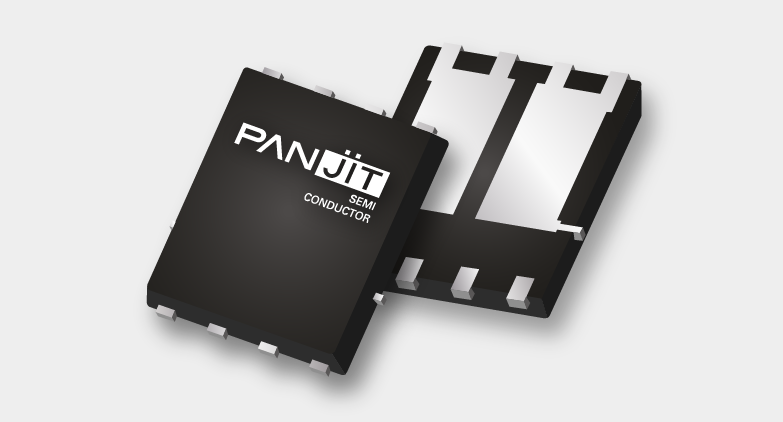

Small Signal Mosfet & Power Mosfet
A MOSFET (Metal-oxide-semiconductor field-effect transistor) is a type of insulated-gate field-effect transistor which is widely used for switching and amplifying signals with the capability to work up to a few hundred KHz. PANJIT has a range of different MOSFETS for many different applications.
There are the Small Signal MOSFETs, which are designed to reduce the size of electronic devices, as their downsized packages are suitable for highly integrated boards. Their purpose is to drive circuits and to switch the signal circuit.
With a BVDSS from 20V to 50V PANJIT develops a family for Low Voltage MOSFETs that are designed to be used for notebooks, tablet PCs and motherboards. Their target is to provide a low on-resistance and to improve the product performance by using the Trench structure wafer and advanced packaging technologies.
The Medium Voltage MOSFETs provide a BVDSS from 60V up to 200V, they are produced with Trench technology to enhance the products characteristics. Their main use cases are synchronous rectification circuits, and their target applications are consumer products such as power supplies and telecommunications power systems.
To complete the portfolio of MOSFETs, PANJIT offers High Voltage MOSFETs with BVDSS ranging from 400V up to 100V. There the application targets are the AC-DC power supply in chargers, home appliances, industrial equipment and a variety of LED lighting devices.
Finally, PANJIT has Super Junction MOSFETs for high-density power supply and inverter motor applications.
A broad range of the MOSFET portfolio has been qualified according to AEC.
Product overview of MOSFETs of our partner PANJIT International Inc.
![[Translate to English:] Panjit Small Signal MOSFET / Power MOSFET](/fileadmin/_processed_/1/0/csm_Panjit-MOSFET_ea50e267cd.png "[Translate to English:] Panjit Small Signal MOSFET / Power MOSFET")
