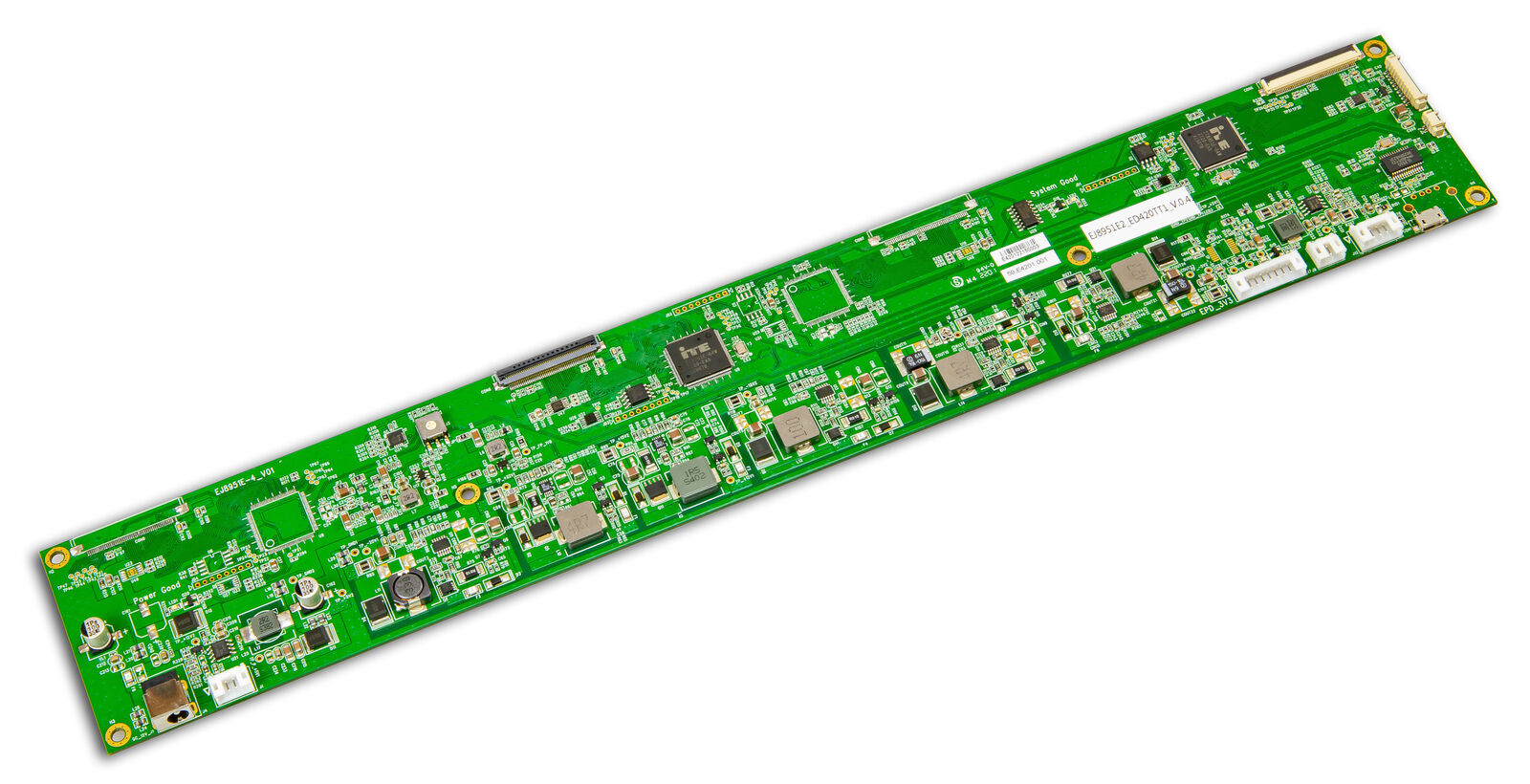

EJ8951E-2

EPD Controller

BECK Elektronik Bauelemente

EJ8951E-2 is designed for driving Electrical Paper Display (EPD) in size 42" with 16 grey levels support, such as ED420TT5, ED420TT3 and ED420TT1.

Tabs

Specification

Resolution, max. 2880 * 2160
Output Signal 2 × TTL
Outline Dimensions 400 * 65 mm
Driving Voltage 12.0 V
Update Possibilities USB
Power 13.3 W
Power, sleep mode 1.2 W
Total Thickness 12 mm
Total Weight 40 g
Grey Level Support 16

Tabs

Downloads

Specification Download
Application Note for Setting Up a Raspberry Pi Download
C++ Demo Code for Raspberry Pi (ejump_rp_usb) Download
C++ Demo Code for Raspberry Pi (ejump_rp_vcom) Download
C++ Demo Code for Raspberry Pi (ejump_rp_waveform) Download
libtcon-dev_usb.so.2.0.4 Download
C++ API Guideline by eJump Download
Information about E-Paper Waveform Modes Download
