A flat and easy plug-and-play solution for everyone who is looking for quick design and integration without complications.

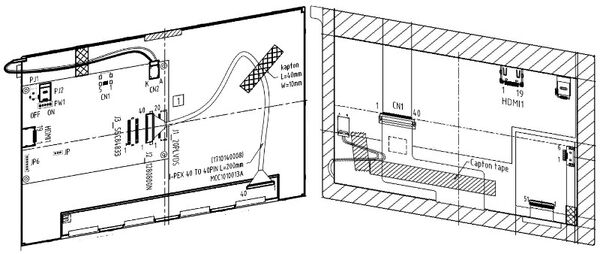

Ampire presents a new range of products: the TFT displays with integrated driving board.

The input interface is HDMI 1.4a. It is perfect for developments on the base of single-board computers like the Raspberry Pi. The power supply is 12V/2A over standard power jack connector. The single-link (Type A HDMI) on-chip TMDS receiver works up to 225MHz and supports a long cable.

The main characteristics of the modules are listed below. More details can be read in the datasheets under the links in the following table:

Model	Größe	Auflösung	Heligkeit	Sonstiges
AM-1024600ATMQW-H6H	7.0"	1024 × 600	1000 cd/m²	-
AM-1024600ATMQW-TH0H	7.0"	1024 × 600	425 cd/m²	PCAP with USB interface
AM-1280800N1TZQW-H0H	10.1"	1280 × 800	500 cd/m²	IPS technology
AM-1280800P3TZQW-H1H	10.1"	1280 × 800	1000 cd/m²	IPS technology
