Near Field Communication (NFC) is an on RFID-Technology based international transmission standard for contactless sharing of data via electromagnetic induction through loose paired inductors at a distance up to 4cm and a bandwidth of max. 424 kBit/s.

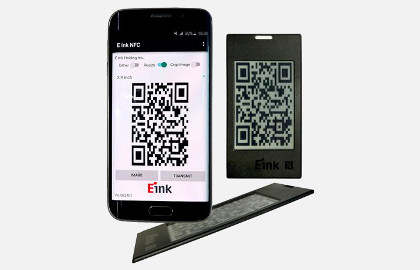

A passive RFID-transponder is integrated in the flat housing of the badge, which includes the 2.9" EPD (resolution 200x300 pixel). By using a for Android available App on your smartphone you can upload an image to the wirelessly powered display within seconds.
NFC technology combined with e-paper displays can be used in different applications:
- Smart posters
- Access control
- Passports
- Luggage tags
- Price labels
- Paperless tickets
| Screen Size | 2.9 Inch |
|---|---|
| Display Resolution | 200 × 300 Pixel |
| Active Area (HxV) | 61.50 × 41.00 mm |
| Pixel Itch | 0.205 × 0.205 mm |
| Pixel Configuration | Square |
| Outline Dimension (HxVxD): Panel side IC side |
80.2 × 50.2 × 0.753 mm 80.2 × 50.2 × 0.653 mm |
