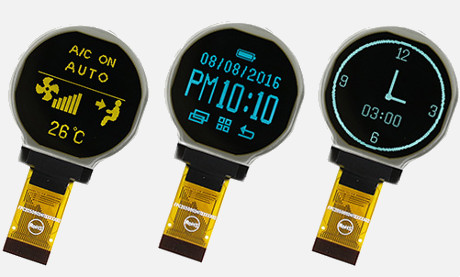

Winstars OLED Display WEO128128B – a circular passive matrix OLED display.
The WEO128128B is a COG structure OLED display, which is ultra-thin and has no need of backlight (self-emitting). It is lightweight and has low power consumption.
It is built in with SSD1327ZB controller IC and it communicates via 6800/8080 8-bit parallel, I2C and 4-wire SPI serial interface. It requires a 3V power supply.
This Circular OLED module is suitable for portable instruments, wearable devices, home applications etc.
The standard emitting colors for this item are available in white, yellow and sky blue.
| Size | Φ1.18 inch |
|---|---|
| Dot Martix | 128 × 128 Dots – Circular |
| Module dimension | 36.98 × 41.23 × 2.05 mm |
| Active Area | 30.00 × 30.00 mm |
| Pixel Size | 0.210 × 0.210 mm |
| Display Mode | Passive Matrix |
| Display Color | Yellow / White / Sky Blue |
| Drive Duty | 1/128 Duty |
| IC | SSD1327ZB |
| Operating temperature | -40°C ~ +80°C |
