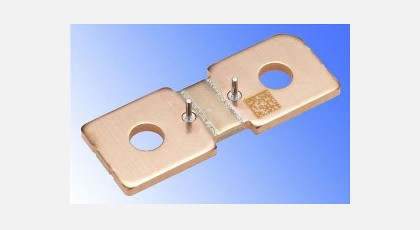

600A – New Large Current High Power Shunt

The new HS series from KOA is ideal for sensing currents up to 600 A.

Constructed using a solid metal alloy resistance element with copper terminations the device provides superior corrosion and heat resistance and has excellent pulse resistance.

Product Features:

  • Large current detection by ultra-low resistance of 100 μΩ
  • High accuracy sensing with dedicated detection terminals
  • High reliability by robust construction
  • Excellent T.C.R. achieved (50±25 ×10-6/K)
  • Correct electric current detection by a voltage pin is possible.
  • Bus bar and Cable can be screwed on.
  • Small size (40 mm × 15 mm) and high performance
  • 2D code marking for individual resistance information is possible
  • Custom specific shapes on request
  • EU-RoHS compliant
  • AEC-Q200 qualified

Applications:

  • Battery Monitoring
  • Home Energy Management (HEMS)
  • Building Energy Management (BEMS)
  • Hybrid Electric Vehicle (HEV) and Electric Vehicle (EV)
  • etc.
