EC133UJ1

Active Matrix E-Paper Display

E-ink

EC133UJ1 is a color, reflective electrophoretic E Ink® technology display module. It is based on active matrix TFT substrate, featuring capacitive glass touch panel and front light and color component.
It has 13.3” active area, the display is capable to display images at 2-16 gray levels (1-4 bits) depending on the display controller and the associated waveform file it used.

Tabs

Specification

Size 13.3 inch
Resolution (HxV) 1600 * 1200
Active Area 270.40 * 202.80 mm
Outline Dimensions 285.80 * 213.65 mm
Dpi 150
E Ink Film Kaleido 3 Outdoor
Refresh Time 450 ms
Backplane Glass
Total Thickness 0.78 mm
Total Weight 96 g
Grey Level 16 and 4096 colors
Front Light  yes
Surface Treatment without AG treatment
Operational temperature range -15°C ~ +65°C
New nomenclature SD1452-NCB

Tabs

Driving kits

Product Image Update Possibility Output Signal Resolution, max. Power Supply Outline Remark
EJ8951E-1 USB TTL 1600 * 1200 5 V 180 * 45 API 2.1, R/B/W and PCF support

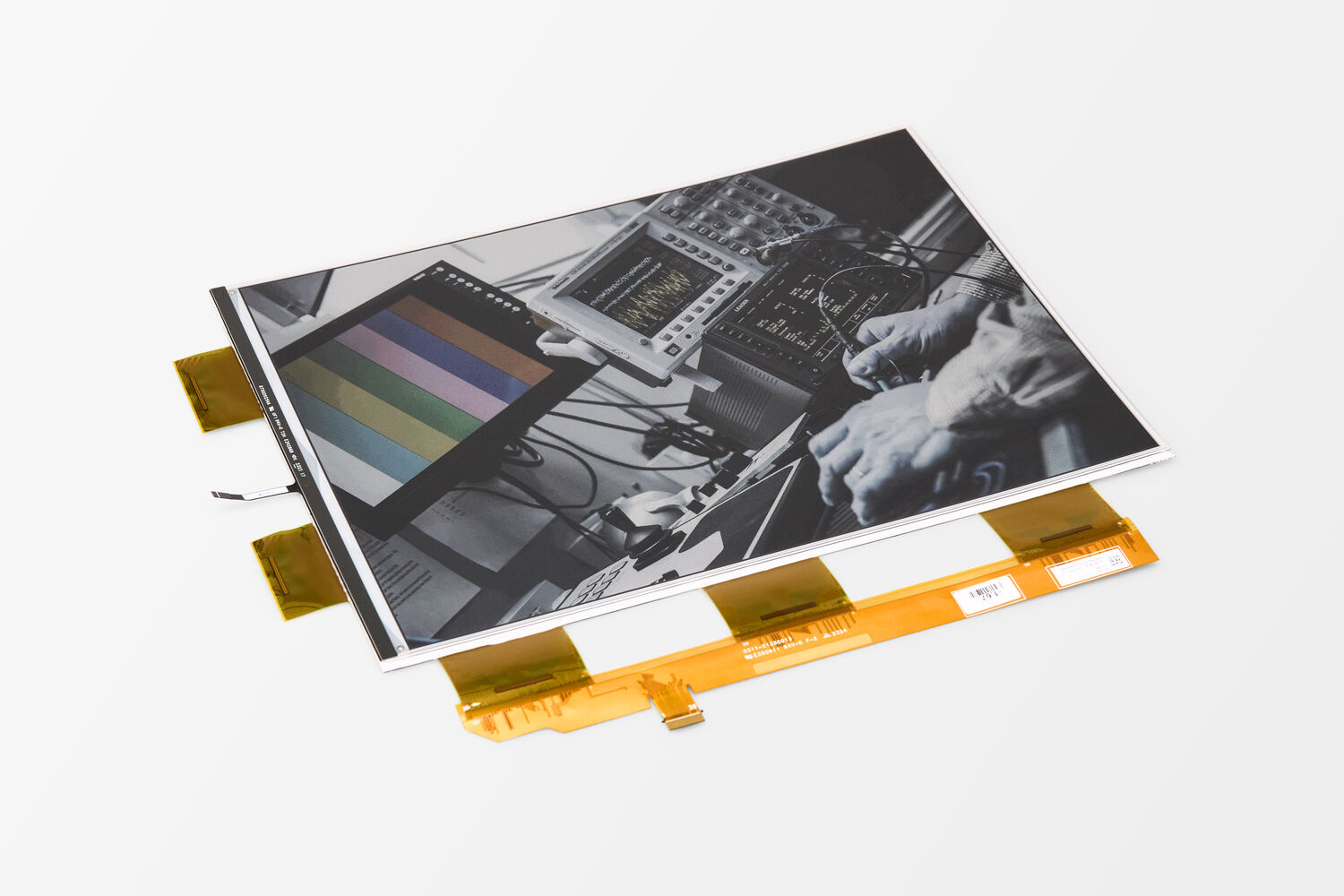

EC133UJ1 – 13.3 inch E Ink EPD
