EC133UJ1
Active Matrix E-Paper Display

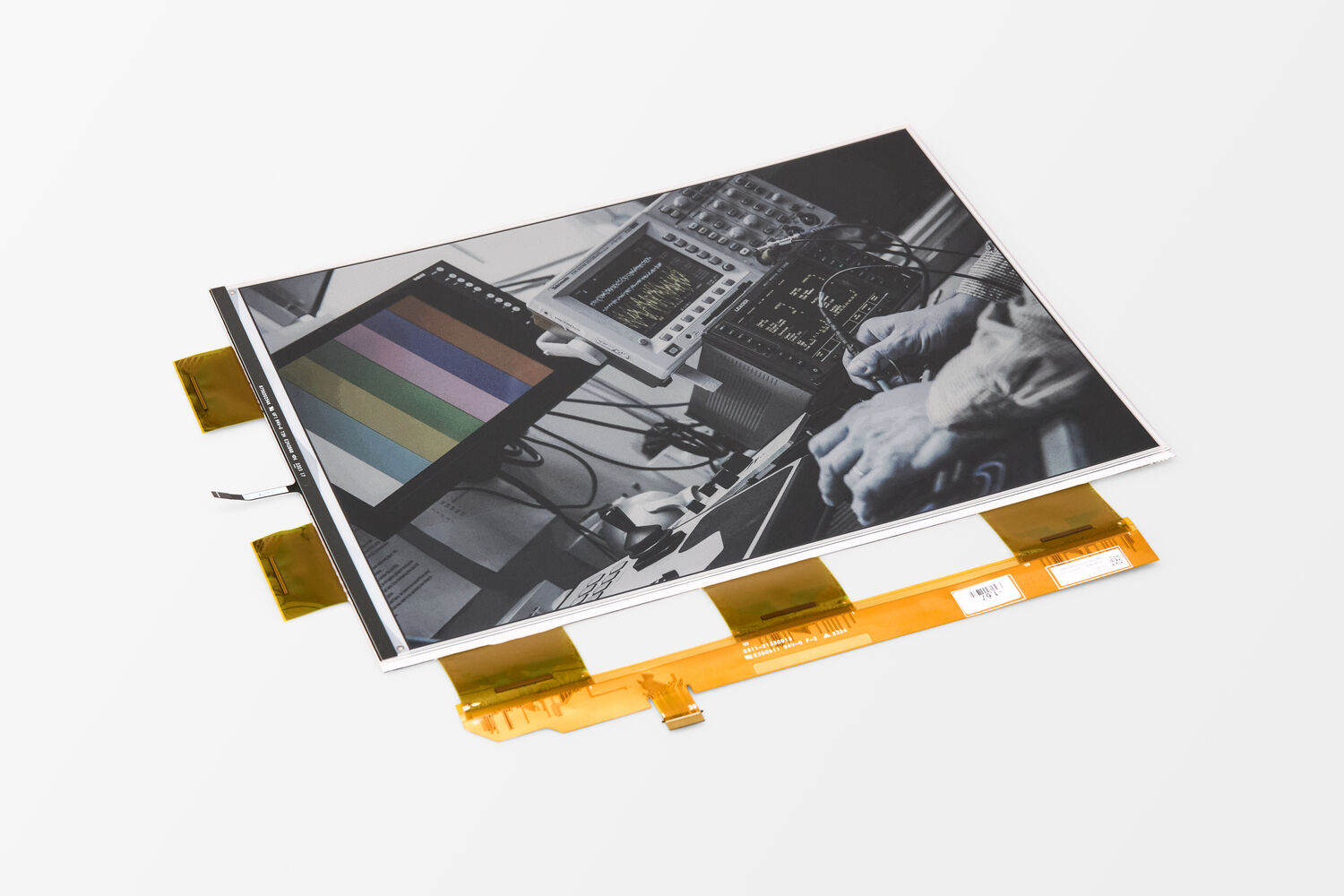

EC133UJ1 is a color, reflective electrophoretic E Ink® technology display module. It is based on active matrix TFT substrate, featuring capacitive glass touch panel and front light and color component.
It has 13.3” active area, the display is capable to display images at 2-16 gray levels (1-4 bits) depending on the display controller and the associated waveform file it used.
Tabs
Specification
| Size | 13.3 inch |
|---|---|
| Resolution (HxV) | 1600 * 1200 |
| Active Area | 270.40 * 202.80 mm |
| Outline Dimensions | 285.80 * 213.65 mm |
| Dpi | 150 |
| E Ink Film | Kaleido 3 Outdoor |
| Refresh Time | 450 ms |
| Backplane | Glass |
| Total Thickness | 0.78 mm |
| Total Weight | 96 g |
| Grey Level | 16 and 4096 colors |
| Front Light | yes |
| Surface Treatment | without AG treatment |
| Operational temperature range | -15°C ~ +65°C |
| New nomenclature | SD1452-NCB |
Tabs
Driving kits
| Product | Image Update Possibility | Output Signal | Resolution, max. | Power Supply | Outline | Remark |
|---|---|---|---|---|---|---|
| EJ8951E-1 | USB | TTL | 1600 * 1200 | 5 V | 180 * 45 | API 2.1, R/B/W and PCF support |
