BJD presents FAKRA connectors for the automotive industry

We are pleased to introduce the FAKRA connectors (short for “Fachkreis Automobil”) from BJD – an essential component for the modern automotive industry. Developed in compliance with DIN 72594-1 and USCAR-18 standards, these connectors have been especially designed for use in vehicles and standardized by German car manufacturers.


FAKRA connectors: key components for versatile automotive applications

As coaxial connectors, FAKRA connectors are predestined for a wide range of automotive applications, including

  • Antenna signals (FM/DAB, TV)
  • High-frequency applications such as keyless go systems
  • Mobile radio technologies (GSM, HF-Bluetooth)
  • Digital camera systems
  • Parking heaters
  • GPS navigation and telematics solutions

An outstanding feature of FAKRA connectors is their mechanical coding and color coding. This ensures that misalignments are reliably avoided. They also enable multiple combinations, which increases flexibility in vehicle design. Typical color codes are:

  • Gray: Radio remote control, central locking
  • Purple: GPS antenna
  • Beige: Parking heater
  • Curry: Radio, video input
  • Aquamarine: Zero coding (multipurpose)

Performance under extreme conditions

FAKRA connectors from BJD are designed for use in demanding conditions. They can withstand wide temperature ranges from -40°C to +105°C and are resistant to shocks and vibrations – ideal for the challenges of the automotive sector. Thanks to their suitability for the reflow soldering process, fast and reliable processing is ensured.

Technical highlights at a glance

  • Impedance: 50 Ω, frequency range up to 6 GHz
  • Contact resistance: maximum 40 mΩ
  • Pull-out force: ≥110 N
  • Operating voltage: up to 60 V
  • Standard types, on-board types and high-speed data types available in numerous variants
  • Mini-FAKRA models for space-saving solutions
  • Variants with protection class up to IPX7 for maximum reliability

Visit us at electronica 2024

electronica 2024

Experience the FAKRA connectors from BJD at electronica 2024 in Munich:

November 12 – 15, 2024
Messe München
Hall C4, Booth 259

About Beijida Electronics (BJD)


Beijida Electronics (BJD) is an exclusive Chinese manufacturer of connectors. Founded in 2004 in Dongguan, BJD now manufactures at two locations in China and in Vietnam with 400 employees. An important feature in terms of adaptability and flexibility for the market is the presence of its own tooling and manufacturing for metal and plastic parts. In addition to the company‘s IATF 16949 certification, BJD can also provide testing to the USCAR-2 standard.

BJD is a company that specializes very strongly in the automotive supply industry, but also supports customer specific solutions in the industrial and consumer goods sectors. Product focus is on pin headers, FFC/ FPC connectors, FAKRA connectors and board to board connectors.

For further information, please get in touch with your contact person in our company at any time or send us an e-mail to info@beck-elektronik[dot]de

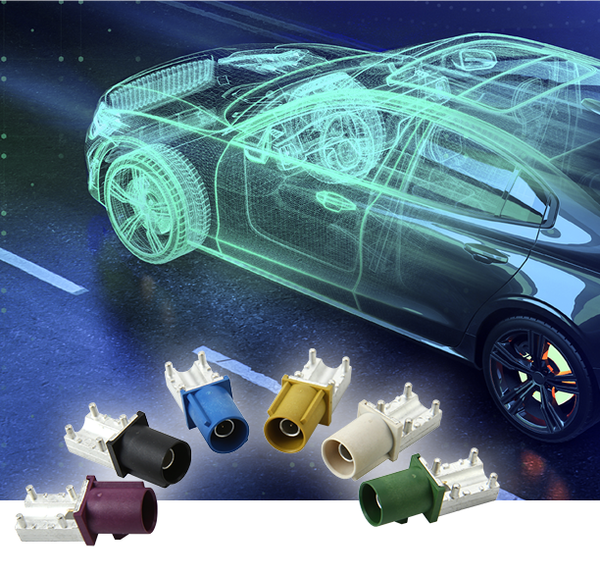

FAKRA connectors from BJD for the automotive industry
Application example: FAKRA connectors from BJD for the automotive industry (Image: BJD / Beck Elektronik / Adobe Stock)
