EL253EW1
Active Matrix E-Paper Display

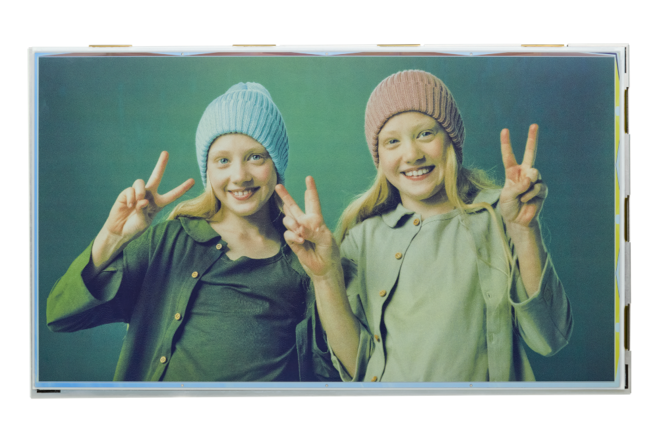

EL253EW1 is a color, reflective electrophoretic E Ink® Spectra 6 technology display module. It is based on active matrix TFT substrate.
It has 25.3” active area, the display is capable to display full color images depending on the display controller and the associated waveform file it used.
Tabs
Specification
| Size | 25.3 inch |
|---|---|
| Resolution (HxV) | 3200 * 1800 |
| Active Area | 560.00 * 315.00 mm |
| Outline Dimensions | 576.5 * 333.00 mm |
| Dpi | 145 |
| E Ink Film | Spectra 6 |
| Backplane | Glass |
| Total Thickness | 0.848 mm |
| Grey Level | Full color |
| Front Light | - |
| Interface | mini LVDS |
| Operational temperature range | 0°C ~ + 50°C |
| New nomenclature | ED2208-PEA |
Tabs
Driving kits
| Product | Image Update Possibility | Output Signal | Resolution, max. | Power Supply | Outline |
|---|---|---|---|---|---|
| EJ1000C | USB | Mini-LVDS | 3840 * 1080 | 12 V | 400 * 65 mm |
