EL253TV1

Active Matrix E-Paper Display

E-ink

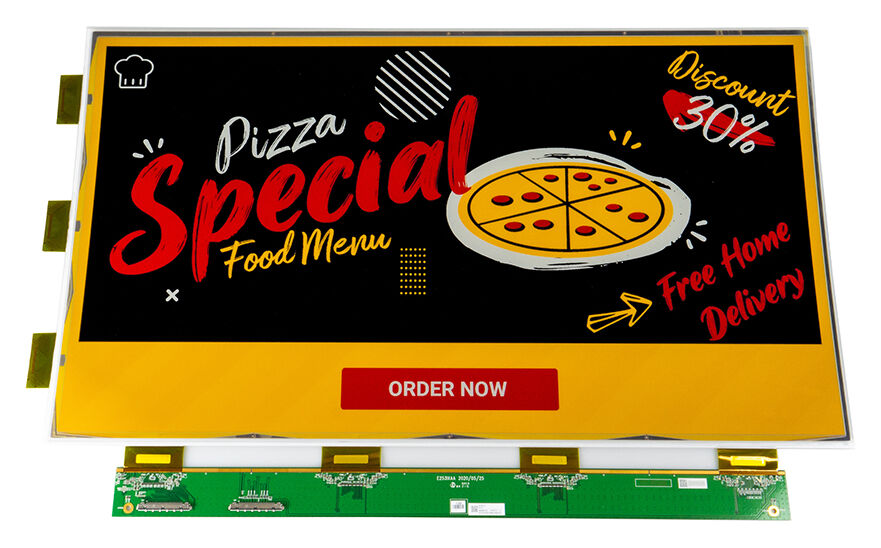

EL253TV1 is a reflective electrophoretic E Ink® Spectra 3100 technology display module based on active matrix TFT substrate.
The diagonal length of active area is 25.3” and contains 3200 × 1800 pixels. The display is capable to display black, white, red and yellow images depending on the display controller and the associated lookup table used.

Tabs

Specification

Size 25.3 inch
Resolution (H*V) 3200 * 1800
Active Area 560.00 * 315.00 mm
Outline Dimensions 576.50 * 333.00 mm
Dpi 150
E Ink Film E Ink Spectra 3100
Refresh Time 25 s
Backplane Glass
Total Thickness 0.85 mm
Total Weight 390 g
Number of colors 4
Interface Mini-LVDS
Front Light  -
Surface Treatment Anti-glare
Operational temperature range 0°C ~ +40°C
New nomenclature EB2000-PEA

Tabs

Driving kits

Product Image Update Possibility Output Signal Resolution, max. Power Supply Outline Remark
EJ1000C USB Mini-LVDS 3200 * 1800 12 V 400 * 65 mm API 2.0
L-T1000 USB Mini-LVDS 8192 * 8192 12 V 160 * 150 mm External temperature sensor’s board

Tabs

Downloads

Brief technical specification Download
