ED312TT3

Active Matrix E-Paper Display

E-ink

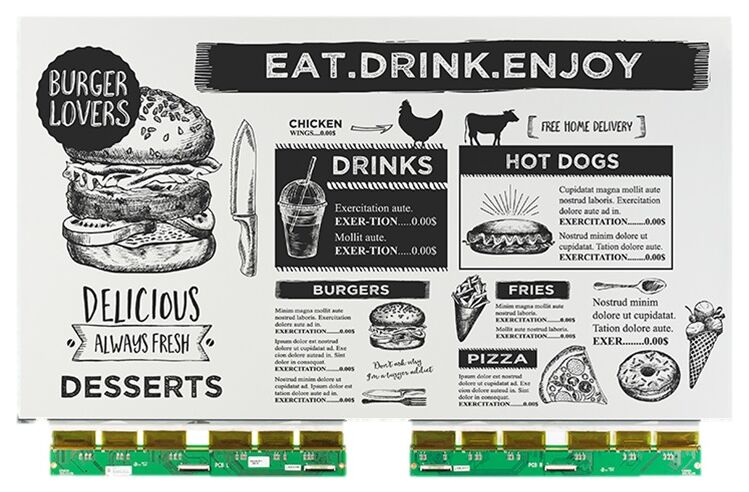

ED312TT3 is a reflective electrophoretic E Ink technology display module based on active matrix TFT substrate.
It has 31.2" active area with 2560 × 1440 pixels, and the display is capable to display images at 2-16 gray levels (1-4 bit) depending on the display controller and the associated waveform file.
The TT3–Version is for extended temperature range application from -15°C to +65°C.

Tabs

Specification

Size 31.2 inch
Resolution (HxV) 2560 * 1440
Active Area 691.20 * 388.80 mm
Outline Dimensions 697.20 * 402.80 mm
Dpi 94
E Ink Film Pearl
Refresh Time 980 ms
Backplane Glass
Total Thickness 0.805 mm
Total Weight 494 g
Grey Level 16
Front Light  -
Surface Treatment Hard Coat
Partial update yes

Tabs

Driving kits

Product Image Update Possibility Output Signal Resolution, max. Power Supply Outline Remark
EJ8951E-4 USB 4 × TTL 2880 * 2160 12 V / 5 A 400 * 65 API 2.0
EPD display reflective electrophoretic ED312TT3
