Displays, BECK Elektronik

BECK offers antibacterial solutions for displays from Winstar

  • Antibacterial Principle
  • Antibacterial Film
  • Antibacterial Glass
  • Antibacterial Product Solution

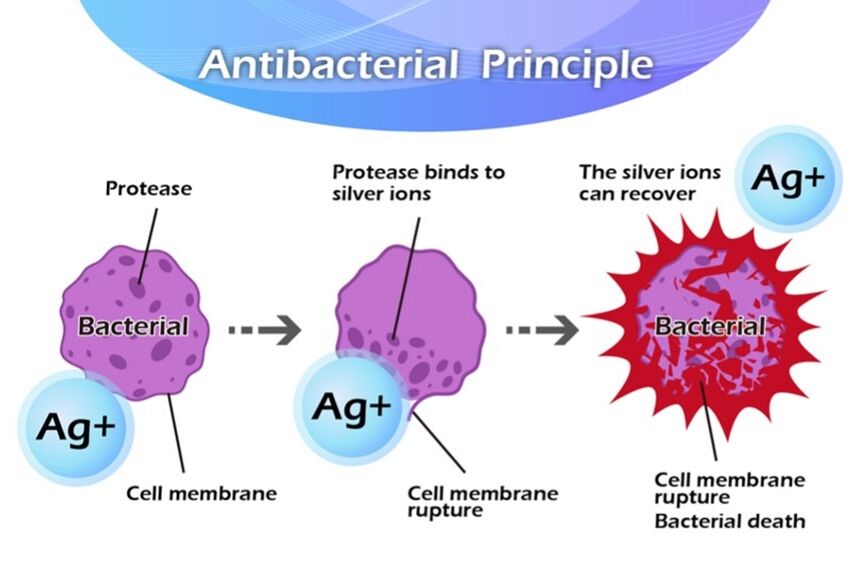

Antibacterial Principle

When bacteria or germs touch the surface of the product, the silver ions on the product surface will contact the cell membrane of the bacteria or germs. The silver ions will undergo a biochemical reaction with the protease of the cell membrane, resulting in biological inactivation (bioinactivation). During the reaction of the two, silver ions will quickly and effectively destroy bacteria and germs; afterward, silver ions will be released from dead bacteria and germs, and then continue to carry out repeated biochemical reactions to other contacting live bacteria and germs until the bacteria and the germs are eliminated. The effect of silver ions is a long-term bactericide with a long-lasting effect.

Winstar launches related antibacterial series products, which will retain antibacterial effect after long-term use. The biological test results show that it is effective in inhibiting Escherichia coli and Staphylococcus aureus, and the antibacterial effect reaches more than 99%, and the antibacterial ability won’t decrease as time goes by.

Antibacterial principle for displays

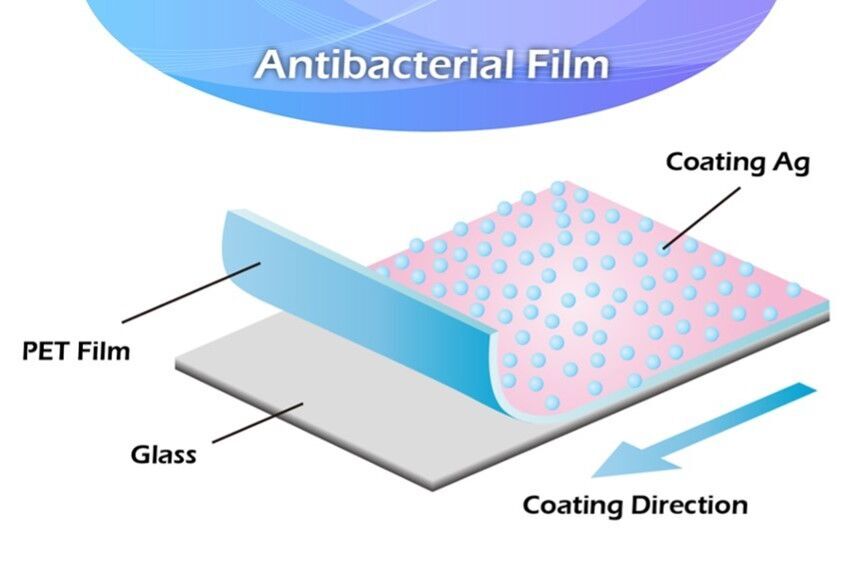

Antibacterial Film

The silver ion material is evenly spread on the PET substrate in a coating process. The silver ion coating layer is tightly combined with the PET after thermal curing treatment to form an antibacterial protective film.

Antibacterial film for displays

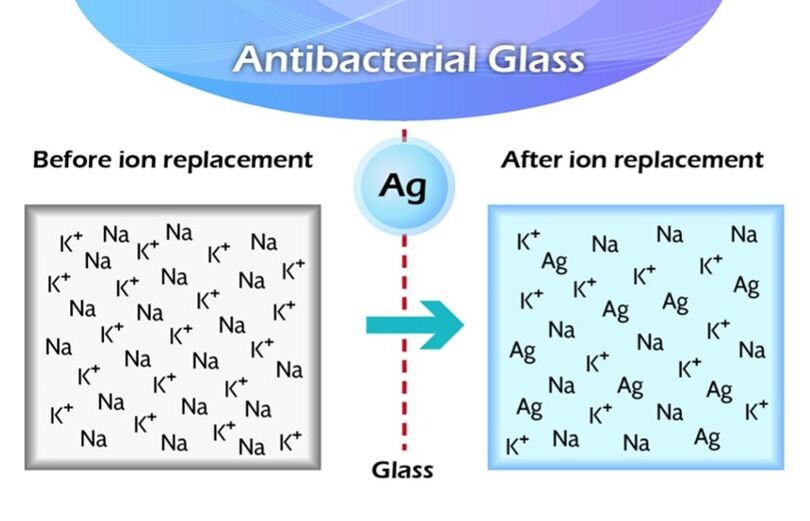

Antibacterial Glass

It is formed by using high-temperature ion exchange method to exchange and combine silver ions with other ions in glass. The antibacterial effect of the antibacterial glass is very good. At the same time, its optical characteristics and surface scratch resistance both have excellent performance. For product portfolio, design considerations can be integrated with cover glass.

Antibacterial glass for displays

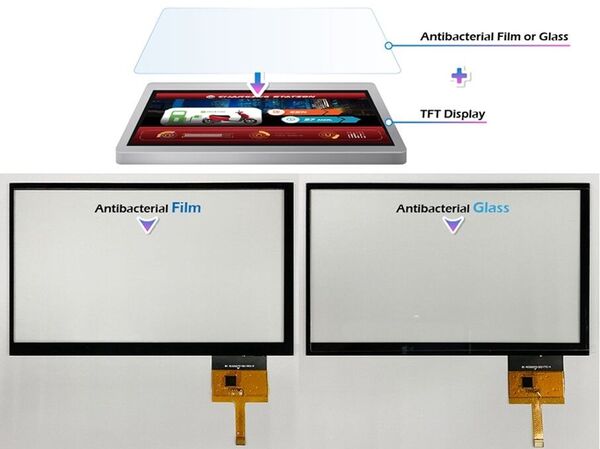

Antibacterial product solution

  • Plan and design with antibacterial display and related products according to customer requirements
  • Plan and design of LCM/CTP/RTP products with antibacterial film
  • Plan and design of LCM/CTP/CG products with antibacterial glass
  • Provide suggestions considering product environment and applications
Antibacterial product solution for displays

For further information please contact your sales partner or use the contact form on our website.
