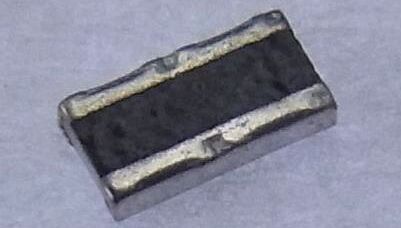

KOA’s new WU73-series, available in 0612 size and in the resistance range 10mO to 100mO, is suitable for current sensing and offers a better T.C.R. compared to the standard wide terminal series.
The WU73-series with its 90° rotated design offers several advantages compared to standard resistor footprints, such as:
- Higher reliability in power applications
- Improved terminal strength
- Lower expansion stress
- Lower temperature rise
- PCB space saving
The 1W power rating is double that of a standard 1206 part with terminations on the short side. The better heat dissipation due to these wider terminals helps to save board space.The high terminal strength is due to the large soldering area.The short distance between the terminals results in significantly less expansion stress in the solder joints.
The Rated Power of a resistor depends on the maximum available heat transport capability, which mainly relies on heat conduction through the solder joint to the PCB. The temperature dissipation through air convection and radiation can be neglected.
The WU73 flat chip resistor use the long sides of the resistor to give better heat dissipation through the solder junctions.
Features:
- Nominal Resistance: 10 mO to 100 mO
- Power Raiting: 1W
- Resistance Tolerance: ±1%
- T.C.R.: ±100 ppm/K (Resistance Range: 13mO…100mO)
±150 ppm/K (Resistance Range: 10mO…12mO) - Operating Temperature Range: -55°C÷155°C
- Space saving
- Excellent heat dissipation characteristics
- Improved solder joint reliability
- Low thermal expansion stress
- Superior temperature and power cycling performance
- Weight: 12g
- AEC-Q200 qualified
Applications:
- Automotive, including ‘under the hood’ applications such as ECUs
- Power supplies
- DC-DC converters
- Motor controls
- Industrial power controls
- Battery packs
- Consumer electronics
