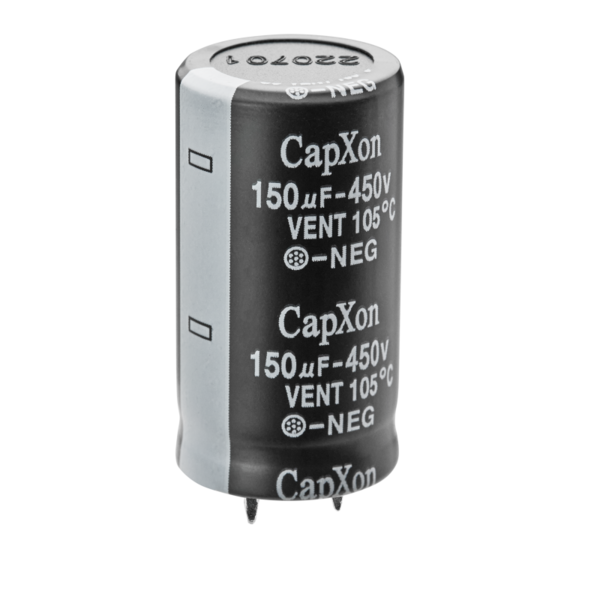

Snap-in aluminium electrolytic capacitors from CapXon

Long lifetime, high ripple current and high voltage


Beck GmbH & Co. Elektronik Bauelemente KG has added a new, strong partner to its portfolio with the Taiwanese aluminum electrolytic capacitor manufacturer CapXon Technology Limited.

We are pleased to present the new additions to our outstanding product series from the CapXon portfolio. The new Snap-In series (UE, UA, UM, UH, UG and UF) stands out with impressive lifetimes of up to 10,000 hours, ripple currents of up to approx. 8.0Arms or voltages of up to 500V and are designed to optimally meet your requirements.

Specifications

Temperature range -40°C (-25°C) to +105°C
Rated voltage 160 to 500 V
Nominal capacitance 39 to 4700 µF
Endurance at 105°C 3000 to 10.000 h
  • High-purity aluminum foils for low leakage currents and long lifetime of 10,000 hours at 105°C
  • Very low dissipation factors and equivalent series resistances due to state-of-the-art separator foil
  • Exceptionally good high and low temperature properties
  • High vibration type on request
  • Automotive AEC Q200 variant available on request

For application in

  • Frequency converters
  • Battery chargers – On-board/off-board chargers
  • Industrial power supplies and drive systems
  • High-performance servers (24/7 operation)
  • Welding equipment and tensile applications

Capxon Technology Limited is a leading manufacturer of electrolytic capacitors. The family-owned company is headquartered in Taipei, Taiwan, where it was founded in 1980. The production facilities for capacitors are located in Shenzhen, China. Also located in China are the company's 3 aluminum foil production facilities and one of the world's first locations where aluminum foil and capacitors are produced under one roof.

Capxon has a high quality standard and meets international requirements such as IATF 16949, ISO 9001 and ISO 14001. The product range includes Aluminum Electrolytic Capacitors, Snap-In and Screw Terminals, Conductive Polymer Capacitors and Polymer Hybrid Aluminum Electrolytic Capacitors.

For further information, please contact Frank Witsch or send an e-mail to info@beck-elektronik.de

New Snap-In series: UE, UA, UM, UH, UG und UF
