Beck Elektronik can provide new OLED displays made by RiTdisplay.

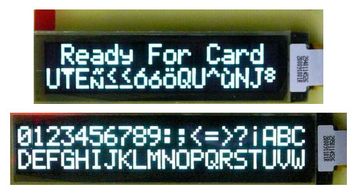

On the one hand, we have character modules of white colour:

• 16 × 2 characters
• 20 × 2 characters

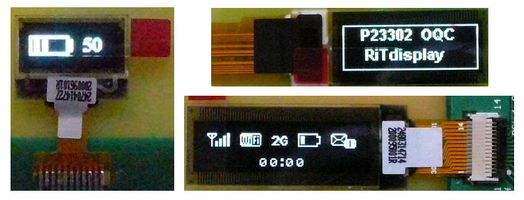

On the other hand, there are small-size graphic displays of considerably high luminance. That means: If operating at standard luminance, the lifetime is essentially extended. We have for example:

• 12,3 mm (0.5“)  72 × 32 dots white 450 cd/ m²
• 20,3 mm (0.8“)  96 × 32 dots white 450 cd/ m²
• 23,1 mm (0.9“) 128 × 32 dots white 350 cd/ m²

As OLED displays inherently feature high contrast (2000:1) and practically unlimited viewing angle, OLED technique is without any alternative for such small-size displays.

Possible applications are e.g. sensors, measurement devices and wearable medical equipment.
