Mitsubishi Panel Replacement

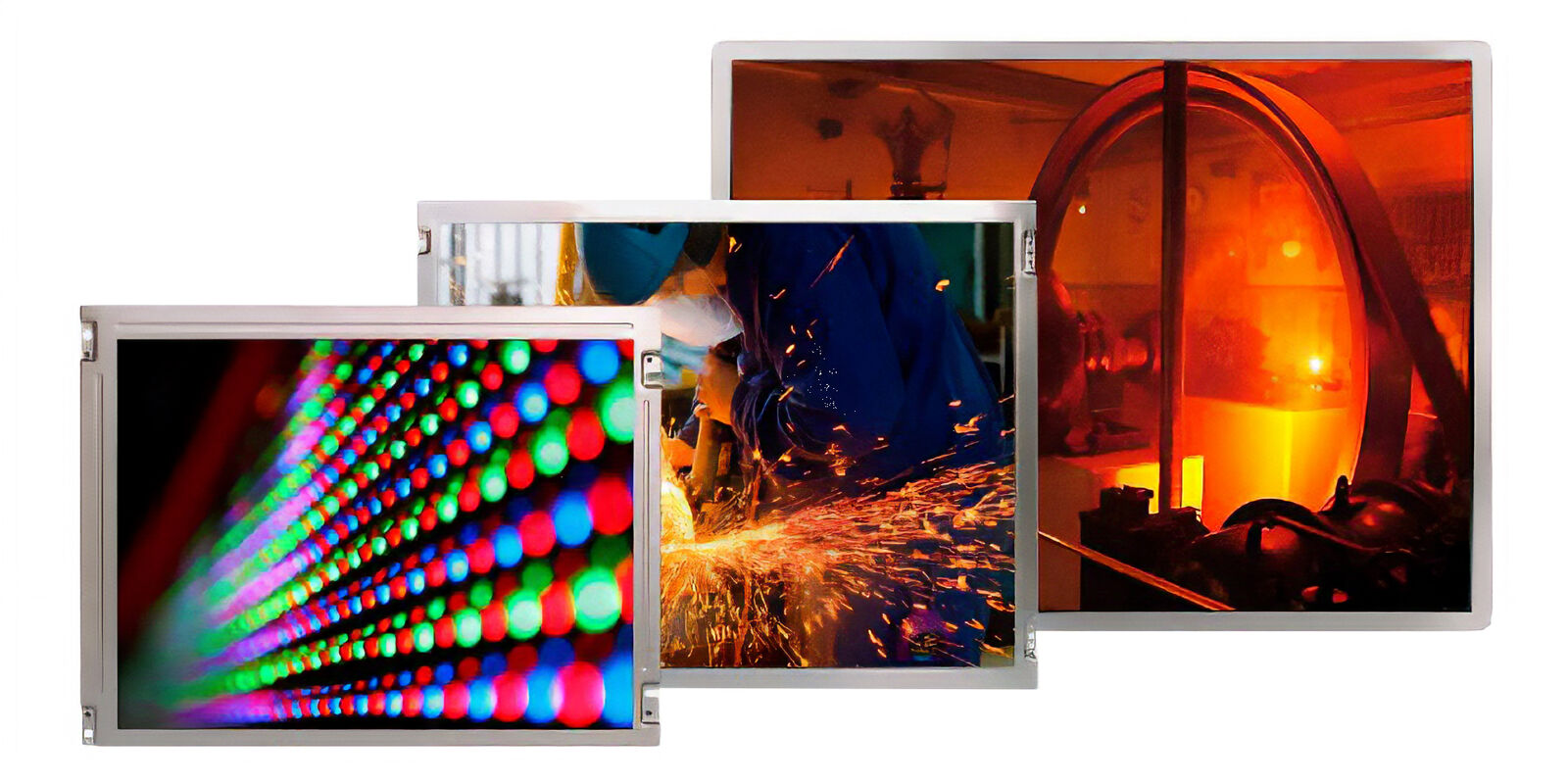

We are ready to replace Mitsubishi panels from 7“ to 10.4“with new displays from Hannstar with 8.4” and Ampire with 7” and 10.4”. These displays are designed as a drop-in replacement.

These are the key features of the replacement panels:

  • super high brightness (up to 1200 cd/m²)
  • high contrast ratios up to 1400:1
  • super-wide viewing architecture (over 170 degrees)
  • wide operating temperature range (-30 to +80 degrees Celsius; typical)
  • touch panel (PCAP, 4-wire resistive; optional)
  • LED – Lifetime up to 100,000 hours
  • embedded LED driver

The Hannstar display replaces the AA84XE01 and the AA084XD01 panels.

Ampire AM-800480OI2TZQW-00 with and without touch are the replacements for the AA070ME01 and AA070ME01-CJ2 panels, and the Ampire AM-1024768K1TZQW-00H for the AA104XG12.

Size
[cm]		 Size
[inch]		 Partnumber Brightness
[cd/m²]		 Contrast Viewing Angle
[3/6/9/12]		 Replacement for
17.78 7.0 AM-800480I2TZQW-00H 1000 1000 85 / 85 / 85 / 85 AA070ME01
17.78 7.0 AM-800480I2TZQW-T00H 850 1000 85 / 85 / 85 / 85 AA070ME01-CJ2
21.34 8.4 8.4” XGA IPS  1000 1400 88 / 88 / 88 / 88 AA84XE01 / AA084XD01
26.46 10.4 AM-1024768K1TZQW-00H 1200 1000 85 / 85 / 85 / 85 AA104XG12

For further information, contact your sales partner or use the contact form on our website.
