Luminus – RGBW Dynamic Tunable COB Modules

The applications of modern LEDs are very broad and the expectations for the professional use are increasing to the same extend. For this reason Beck Elektronik offers the latest addition to the Luminus Portfolio, the RGBW Dynamic Tunable COB Modules.

The modules with chip on board technology, CTM-9-RGBW-12-TW01 and CTM-14-RGBW-24-TW01, have two different sized diameters of the light emitting surface (9.5 and 14.5 mm). They consist of 1616 LEDs in blue and warm white as well as phosphor-converted red and green on a metal PCB, which is driven with four channels. A constant performance and a uniform spectrum over wide temperature and current ranges is achieved by using the same blue InGaN chip for all LEDs. The modules are therefore perfectly suitable for a wide range of indoor and outdoor lighting applications.

Part Number LES Diameter Board Size Nominal Watts Nominal Voltage White (2700K, 90CRI) Blue (458nm dominant) Red (625nm dominant) Green (530nm dominant)
per channel @200mA typical flux @200mA, 85°C
CTM-9-RGBW-12-TW01 9.5 mm 12 × 15 mm 2 W 12 V 219 lm 58 lm 47 lm 325 lm
CTM-14-RGBW-24-TW01 14.0 mm 20 × 24 mm 4 W 24 V 438 lm 115 lm 94 lm 650 lm

In addition the Luminus MP-1616 in various versions is also available as a single component. Besides the white colored LED the variants in blue and phosphor-converted green and red are new to the product family. The combination of an extremely wide beam angle of 135° and a compact package size of 1.6 × 1.6 mm also opens the door to a variety of different applications.

Part Number Color Dominant  Wavelength Package Voltage Current Typical Flux Viewing Angle
MP-1616-2113-RB Royal Blue 455 – 460 nm 1.6 × 1.6 mm 6 V 150 mA 20 lm 135 °
MP-1616-2113-PG Phosphor Green 525 – 540 nm 1.6 × 1.6 mm 6 V 150 mA 138 lm 135 °
MP-1616-2113-PR Phosphor Red 620 – 630 nm 1.6 × 1.6 mm 6 V 150 mA 139 lm 135 °

Links:

For further information, datasheets and samples please contact your sales partner or use the contact form on our website.

Luminus CTM-RGBW in two sizes: 9.5 und 14.5 mm
Luminus CTM-RGBW in two sizes: 9.5 und 14.5 mm

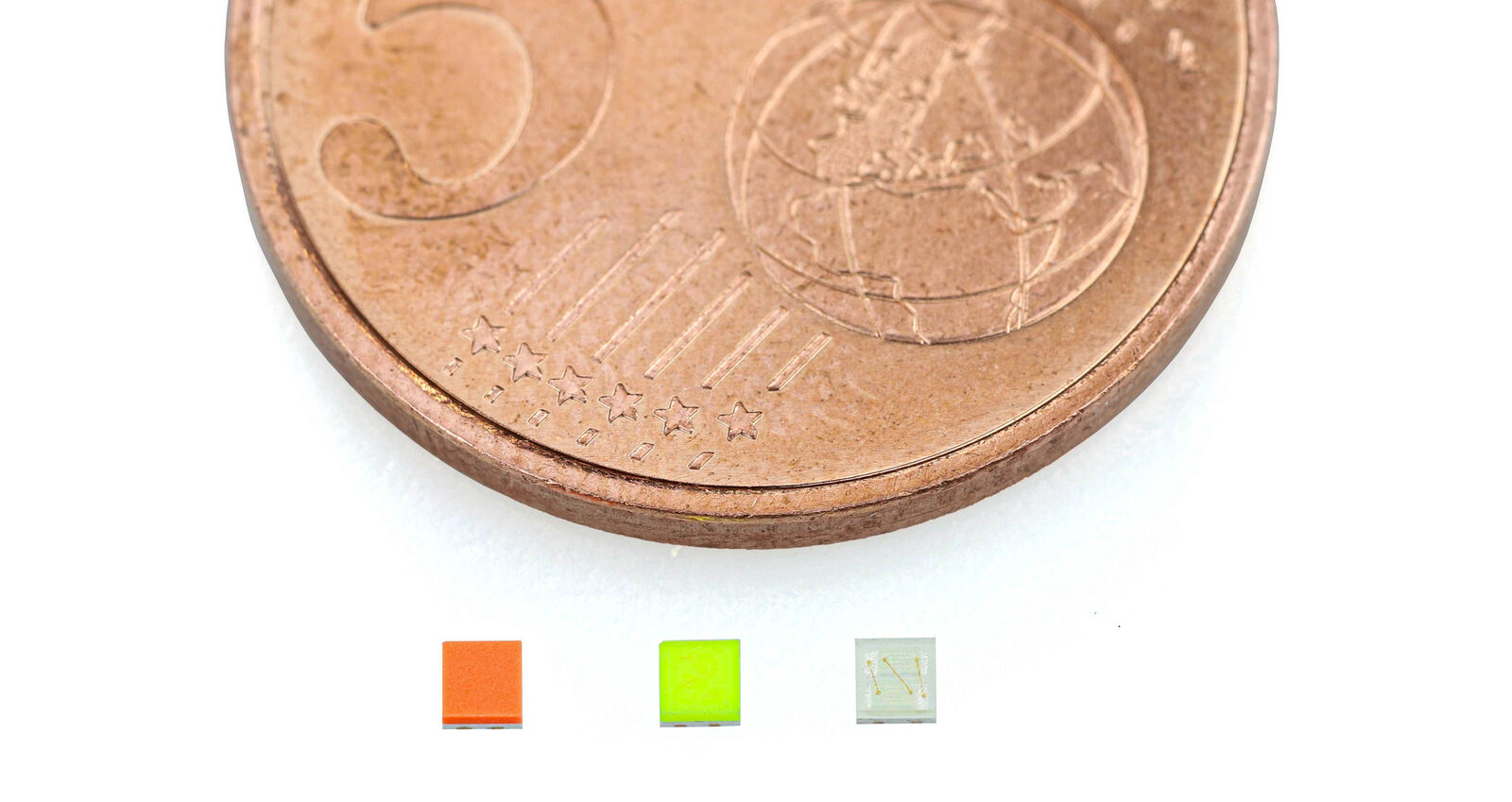

MP-1616 – compact package size of 1.6 × 1.6 mm
MP-1616 – compact package size of 1.6 × 1.6 mm
