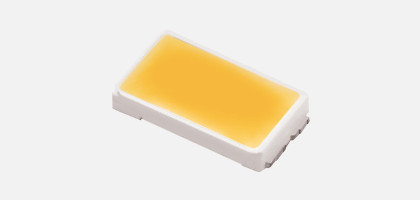

Lextars extended its 5630-Series with a new high efficient Power-LED: PC56H19.

The new 0.2 Watt-version (max. 0.58 Watt) reaches an efficacy of up to 185 lm/W at warm white CCTs and up to 215 lm/W at cold white CCTs with luminous flux values between 32 lm and 40 lm.

The products are specified for a forward voltage of 2.85 V and a constant current of 65 mA (max. 150 mA).

The colour-quality is defined with CRI-values of at least 80 Ra.

PC56H19 are available in the colour-temperatures 2700K, 3000K, 3500K, 4000K, 5000K, 5700K and 6500K.

With dimensions of 5.6 × 3.0 × 0.6 mm and a viewing angle of 120° the products of the 5630-series are suitable for almost all kinds of application fields, especially flashlight and industrial lighting indoor as well as outdoor.
