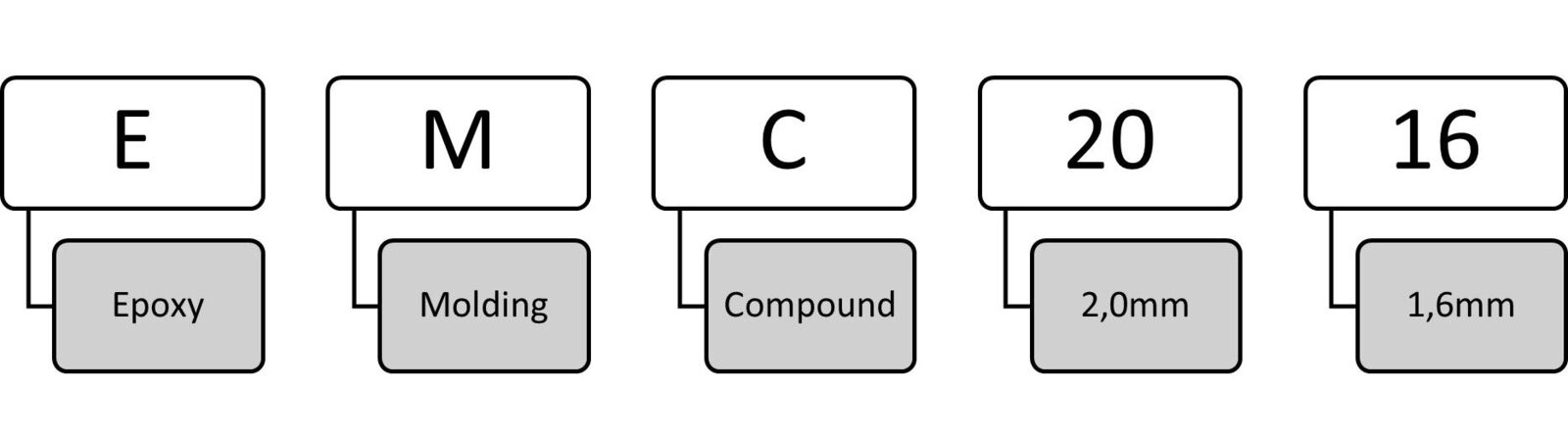

LED technology "EMC2016 Series" in the automotive industry
Focus on efficiency, safety and design
The integration of LED technology in the automotive industry not only represents a technological innovation, but also offers huge advantages in terms of efficiency, safety and design. These various aspects are what make the use of LEDs in vehicles so important.
Energy efficiency: reducing energy consumption and sustainable mobility The introduction of LED light sources in cars enables significant improvements in energy efficiency compared to conventional light bulbs and halogen lamps. These improvements lead to a reduction in energy consumption in the vehicle, which is particularly important in times of increasing environmental regulations and the focus on sustainable mobility.
Improved safety: precise light alignment and faster reaction times LED headlights ensure a more precise alignment of the light beam, which leads to better visibility and therefore increased road safety. In addition, LED rear lights can react more quickly to braking, which shortens the reaction time for other road users.
Design flexibility: Innovative vehicle design thanks to versatile design options The compact size and flexible integration options of LEDs open up new horizons for car manufacturers in the field of vehicle design. From striking headlights to innovative interior lighting concepts, LEDs offer a wide range of design options that make it possible to revolutionize the appearance of vehicles.
Environmental friendliness: focus on sustainability and recycling LEDs contain no harmful substances such as mercury and are 100% recyclable. The use of LEDs in cars helps to create more environmentally friendly vehicles and reduce the ecological footprint.
Features:
Pb-free and RoHS-compliant product
High efficiency / high light output
SMT compatible package
Better corrosion resistance
Moisture sensitivity level (MSL) 2a
EMC has high heat resistance, strong adhesive strength, UV protection, high dielectric strength
Colour
EOI Part No.
Driving Current If (mA)
Total Flux
Viewing Angle 2θ1/2
Chromaticity
Forward Voltage Vf (V)
Min.
Typ.
Typ.
Typ.
Min.
Max.

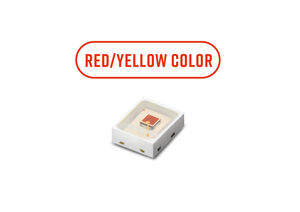

Red
EOS-9WPYCRA-KK
50
4.9
7.0
120°
617
1.85
2.75
Deep Red
EOS-9WUYCRA-KK
50
4.0
4.5
120°
630
1.85
2.75
Red
EOS-9WPSCRA-KL
140
18.1
22.0
120°
617
1.85
2.75
Deep Red
EOS-9WUSCRA-KL
140
10.7
14.0
120°
630
1.85
2.75
Yellow
EOS-9WYYCRA-KK
50
4.9
7.0
120°
589
1.85
2.75
Yellow
EOS-9WYSCRA-KL
140
10.7
13.2
120°
589
1.85
2.75
Data source: EOI LED catalogs
Colour
EOI Part No.
Driving Current If (mA)
Total Flux
Viewing Angle 2θ1/2
Chromaticity
Forward Voltage Vf (V)
Min.
Typ.
Typ.
Typ.
Min.
Max.

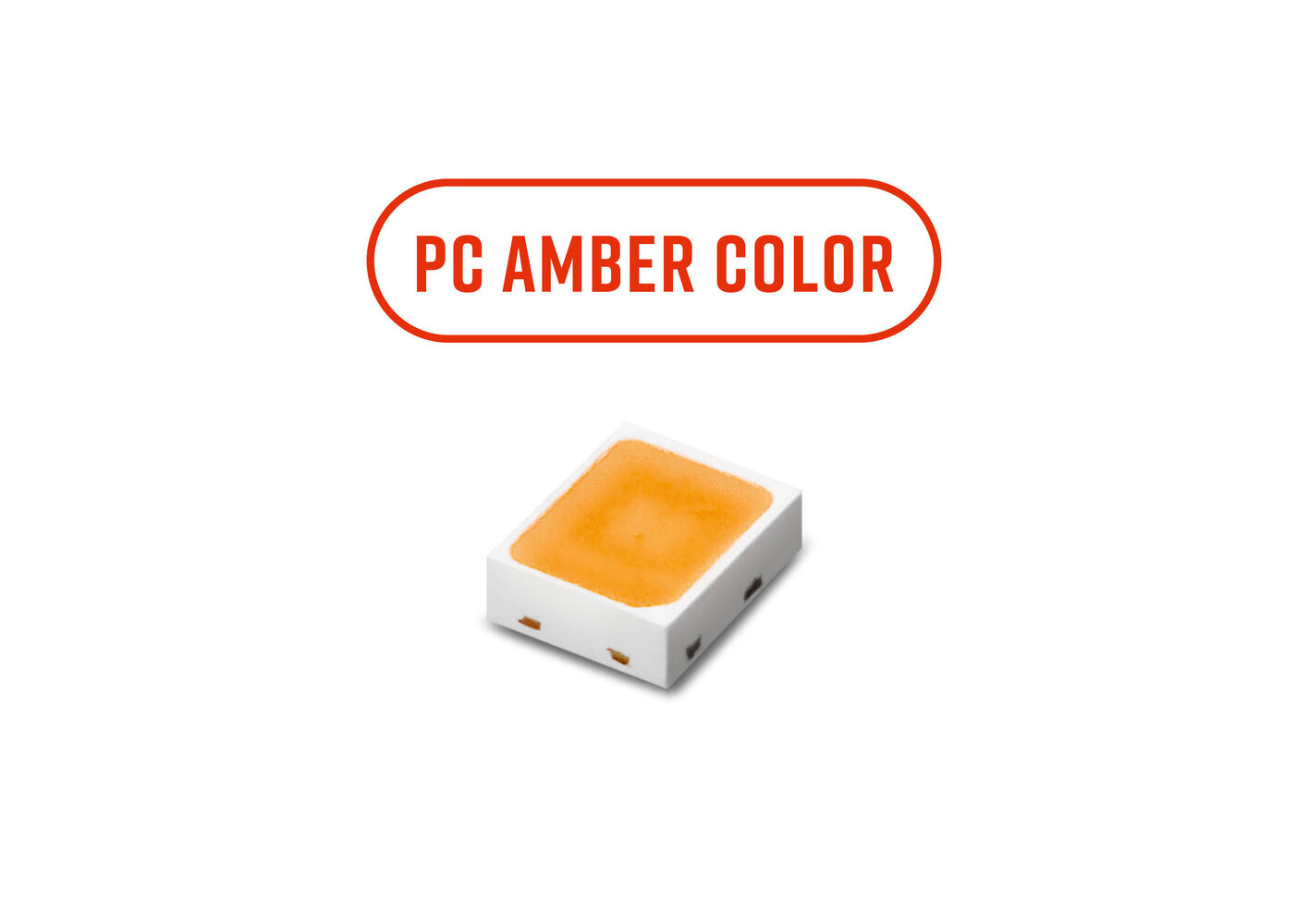

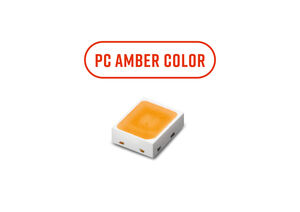

Amber
EOS-9WYYGRA-EF
50
4.9
6
120°
(0.572,0.424)
3
3.5
Amber
EOS-9WYSGRA-ER
140
13.9
18
120°
(0.572,0.424)
3
3.6
Data source: EOI LED catalogs
Colour
EOI Part No.
Driving Current If (mA)
Total Flux
Viewing Angle 2θ1/2
Chromaticity
Forward Voltage Vf (V)
Min.
Typ.
Typ.
Typ.
Min.
Max.

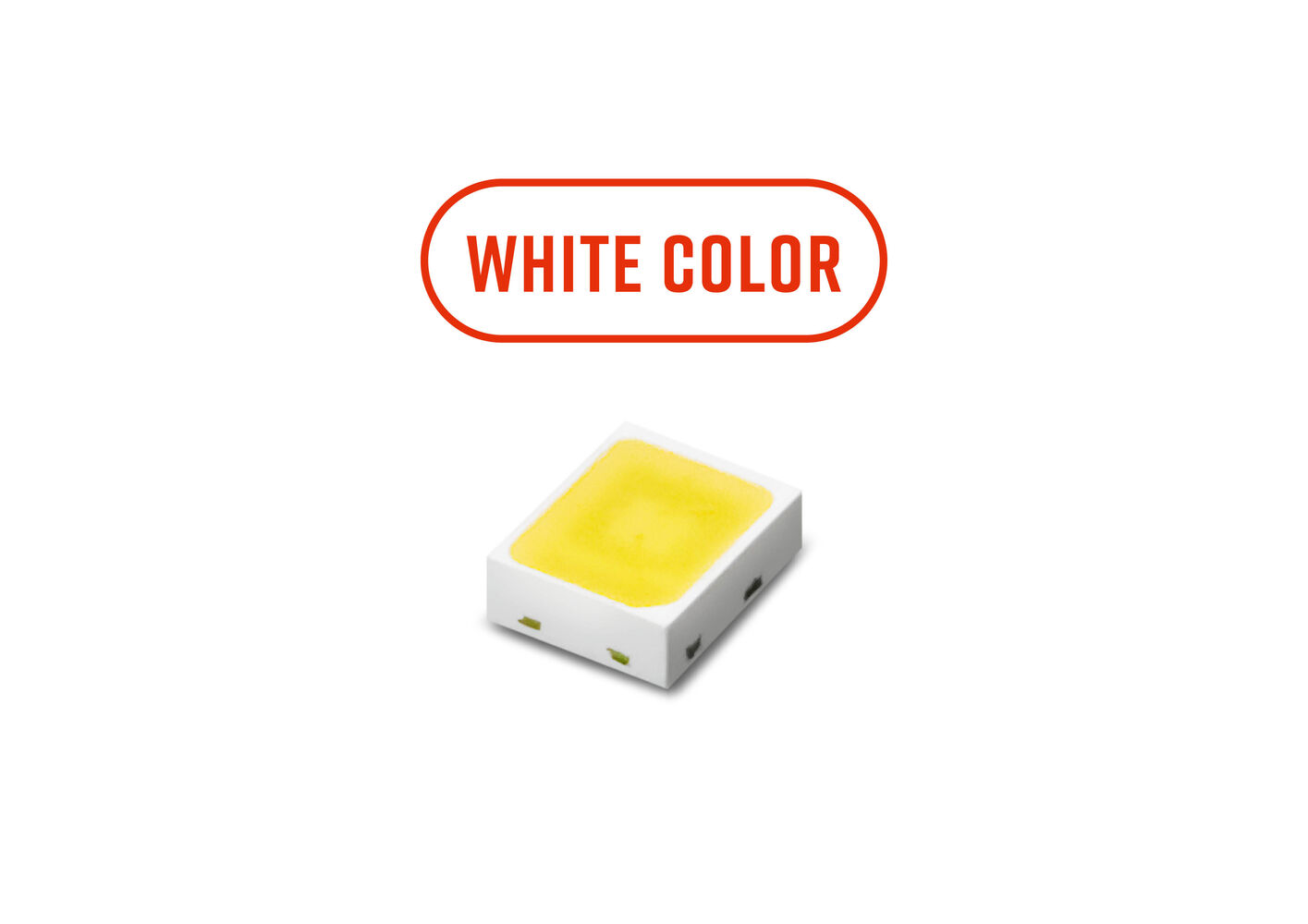

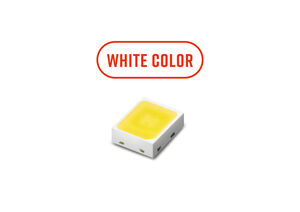

White
EOS-9WWYGBA-EF
50
8.2
11
120°
(0.33,0.33)
3
3.5
White
EOS-9WWSGBA-ER
140
23.5
32
120°
(0.33,0.33)
3
3.6
Data source: EOI LED catalogs
Manufacturer profile: Excellence Optoelectronics Inc. (EOI)
Excellence Optoelectronics Inc (EOI) is a technology-oriented company based in Taiwan. With ISO9001, QS9000 and TS16949 certification, EOI ensures the highest product quality and performance.
EOI is a professional manufacturer of LED lamps with AlInGaP and InGaN chip materials. With strong expertise in optical, mechanical and electrical design and precision measurement, EOI is able to provide efficient LED components and modules to meet customers' requirements and offer comprehensive technical solutions.
To lead the measurement technology and quality assurance capabilities, EOI has established an optical calibration and measurement laboratory certified by the Taiwan Accreditation Foundation Lab (TAF). The measurement reports from this lab are recognized by international standards. Among Taiwanese LED packaging companies, EOI is the only company that has a TAF laboratory.
For further information, please do not hesitate to contact your contact person in our company or send us an e-mail to infobeck-elektronik[dot]de
