TLR Series – Current Sensing Resistors / Metal Plate Technology / Low Resistance and High Power

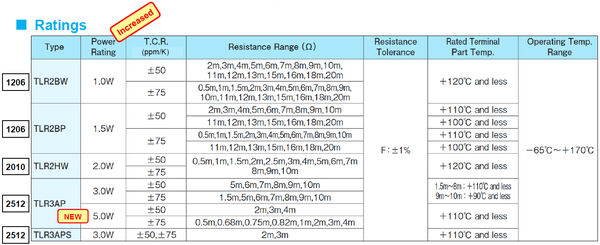

Features:

• Ultra low resistance: 0.5 mΩ to 20 mΩ (suitable for large current sensing)
• Current ratings up to 100 A
• T.C.R.: ±50 / ±75 ppm/K
• Ultra low profile height: 0.6 … 0.7 mm (suitable for use of small equipment)
• Special no 'hotspot' trimming for high reliability
• Low parasitic inductance
• Automatic mounting machines are applicable
• Size: from 0805 to 2512 inch (5 sizes)
• Operating Temperature: up to +170 °C
• EU-RoHS compliant, AEC-Q200 qualified
• Filletless product (soldering area is only the bottom electrode)
• Lab Kits are available

Application Examples:

• Automotive electronics
• Power steering (EPS)
• Motor control units
• Inverter power supplies
• AC / DC-DC converter
• Metering
• CPU current sensing
• Mobile devices charge controller
