BYG2x Avalanche Rectifiers for Automotive

TSC has recently added BYG21M (1.5A, 1000V, Fast Recovery) to its portfolio of avalanche surface mount rectifiers.

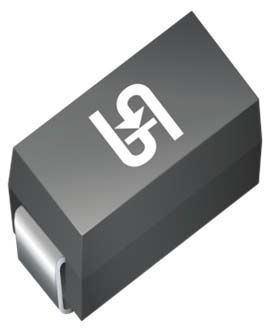

All BYG2x devices come in a halogen-free SMA package with AEC-Q qualified versions available for automotive applications.

Applications: free-wheeling, clamping, snubber, demagnetization in power supplies and other power switching application.

Features:

  • Glass passivated junction chip
  • Ideal for automated placement
  • Fast switching for high efficiency
  • High surge current capability
  • Halogen-free
  • RoHS compliant
  • Weight: 64 mg (approximately)
Type IF(AV) trr Voltage Range
BYG20D 1.5 A 75 ns 200-600 V
BYG21M 1.5 A 120 ns 1000 V
BYG22x 2.0 A 25 ns 50-200 V
BYG23M 1.5 A 65 ns 1000 V
