New AD-Boards / DCMR-Cards now available at BECK: DCMR-61 and DCMR-4k

Two new DCMR-Cards are now available:

  • DCMR-61 – small size kit solution with DP-input
  • DCMR-4k – a solution to drive UHD Panels

DCMR-61 supports dual channel LVDS with 24bpp up to 186MHz clock.
As input is a DisplayPort used. Scaler-chip is the well-known Realtek-chip RTD 2486. The LCD-voltage can be chosen between 3V and 5V.

DCMR-4k supports beneath 8-channel LVDS with 30bpp, V-by-One and eDP. Also a DisplayPort output with Daisy-chain-capability. The Boards’ inputs are DP(x1), HDMI(x5) and VGA(x1). As Scaler-chip the Realtek RTD2796B is used, which supports 4K (4096x2160@60Hz). Input voltage can be chosen between 12V and 24V. LCD-voltages up to 24V can be set up. Image rotations 90°, 180° and 270° are selectable in OSD-menu. Furthermore a picture in picture possibility for up to four sources is available. Integrated is also DDC/CI.

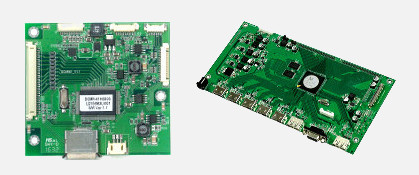

AD-Boards DCMR-61 and DCMR-4k
