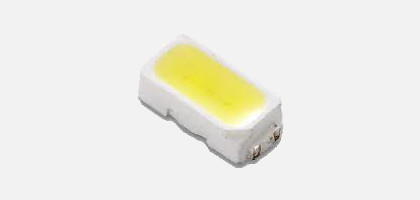

Lextar upgrades its 3014-Series and offers the model PC30H08 now with even higher efficiency.

The new version provides significant enhancements in view of the luminous flux: typical values of up to 31.5 lm are reached with a constant current of 60 mA and a forward voltage of 3.0 V resulting in efficiencies of up to 175 lm/W. At 30 mA a luminous flux of up to 16 lm can be achieved.

The colour-quality remains with CRI-values of at least 80 Ra.

As usual PC30H08 is available in the colour-temperatures 2700K, 3000K, 3500K, 4000K, 5000K, 5700K and 6500K.

With dimensions of 3.0 × 1.4 × 0.8 mm and a viewing angle of 120° the products of the 3014-series are suitable for all kinds of application fields, especially flashlight and industrial lighting indoor as well as outdoor.
