Compact single-phase filter for a wide current range

SCHURTER is expanding its successful single-phase filter family, FMAB NEO, with new design series P and Q.

The new FMAB filter family offers 3 different levels of design flexibility.
FMAB NEO design N comes with two large X capacitors, that offer high symmetrical attenuation in the lower frequency range.
The new filter design P contains two standard X capacitors for high symmetrical attenuation, while Design Q offers one X capacitor for good symmetrical attenuation.

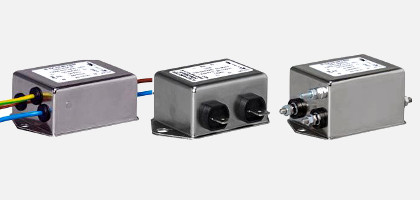

The FMAB NEO filters have a polished steel housing with a closed filter base. The filter is thus effectively and completely shielded, regardless of how it is mounted. The filter series is particularly suitable for equipment with high symmetrical interferences, such as devices with semiconductors that control high-power equipment.

The filter series is fitted with plug-in connections or threaded bolts. A version with wire connections is also available. The metal flange provides easy screw-on mounting.

Versions are available with small leakage currents <80 µA (M80) or without leakage current <5 µA (M5) for medical equipment according to IEC/UL 60601-1.

Features and advantages:

  • High performance in a compact design
  • Extending the current range up to 60 A, with an extended temperature range from
    -40°C to 100°C
  • The series of filters is designed for current levels from 1 A to 60 A at 250 V AC according to IEC and UL standards
  • ENEC and cURus approvals
  • The FMAB NEO suited for applications according to IEC 60950

Technical data:

  • 250 VAC single-phase block filter
  • Single-stage filter with good or standard attenuation
  • Filter available ins standard or medical M5 / M80 version
  • Rated currents: 1, 3, 6, 10, 12, 16, 20, 30, 60 A (ENEC / UL / CSA) at 40°C
  • Operating Temperature: -40°C to 100°C
  • Chassis: Screw-on mounting, from top
  • Quick connect terminals 1 – 20 A, nut and bolt 30, 60 A, optional wire leads

Applications:

  • For applications with low ambient temperatures
  • Design P for applications with high symmetrical interferences
  • Industrial applications
  • Commercial kitchen equipment
  • Professionelle Küchengeräte
  • Datacom equipment
  • Medical equipment
  • Household appliances
