ET014TT6
Active Matrix E-Paper Display

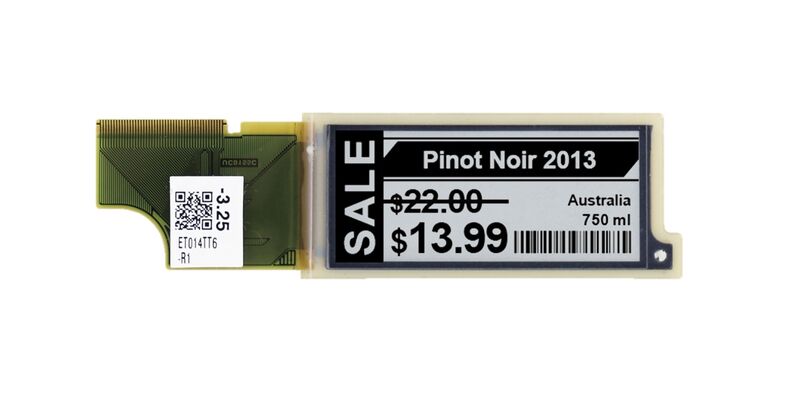

The 1.43 inch EPD is a reflective electrophoretic E Ink technology display module based on active matrix TFT and plastic substrate.
It has 1.43 inch active area with 128 × 296 pixels, the display is capable to display images at Black and White (1 bit only) depending on the display controller and the associated waveform file it used.
Tabs
Specification
| Size | 1.43 inch |
|---|---|
| Resolution (HxV) | 128 * 296 |
| Active Area | 14.46 * 33.45 mm |
| Outline Dimensions | 18.30 * 42.70 mm |
| Dpi | 224 |
| E Ink Film | Thin Pearl |
| Refresh Time | 3.2 sec |
| Backplane | Flexible |
| Total Thickness | 0.4 mm |
| Total Weight | 0.4 g |
| Grey Level | 2 |
| Front Light | - |
| Surface Treatment | Hard Coat |
