ET014TT6

Active Matrix E-Paper Display

E-ink

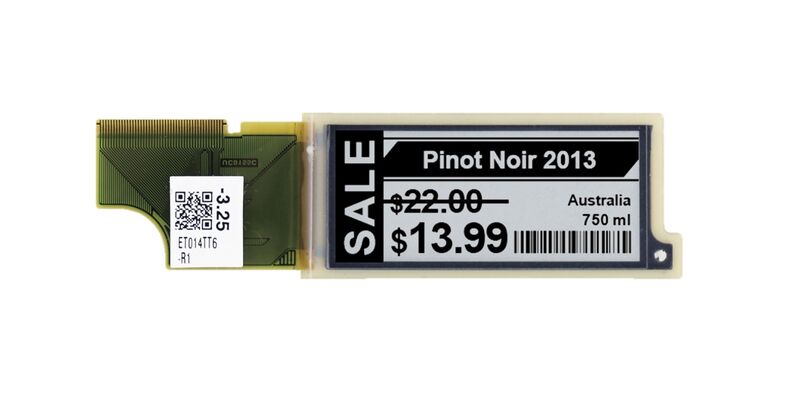

The 1.43 inch EPD is a reflective electrophoretic E Ink technology display module based on active matrix TFT and plastic substrate.
It has 1.43 inch active area with 128 × 296 pixels, the display is capable to display images at Black and White (1 bit only) depending on the display controller and the associated waveform file it used.

Tabs

Specification

Size 1.43 inch
Resolution (HxV) 128 * 296
Active Area 14.46 * 33.45 mm
Outline Dimensions 18.30 * 42.70 mm
Dpi 224
E Ink Film Thin Pearl
Refresh Time 3.2 sec
Backplane Flexible
Total Thickness 0.4 mm
Total Weight 0.4 g
Grey Level 2
Front Light  -
Surface Treatment Hard Coat
[Translate to English:] EPD display reflective electrophoretic ET014TT6
